aramid yarns splicing fiber optic router cable price

aramid yarns splicing fiber optic router cable price

Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CFR,CIF,EXW,DDU,Express Delivery
Min. Order:	1 Kilometer
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: ABC

Brand: OEM

Origin: China

Certification: CE/ROHS/ISO9001 /ANATEL

Place Of Origin: China

Number Of Cores: ≥ 10

Product Name: indoor outdoor access fiber optic cable

Application: Indoor/Outdoor access building

Use: Telecommunication/FTTH Networks

Fiber Options: G657A1, G657A2

Strength Member: Aramid Yarn

Fiber Count: 1-12 cores

Material Of Jacket: UV and flame resistant LSZH

Non Armored: YES

Certification: ISO9001/CE/RoHS

Keyword: access building fiber cable

Packaging & Delivery

Selling Units:	Kilometer
Package Type:	wooden spool
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

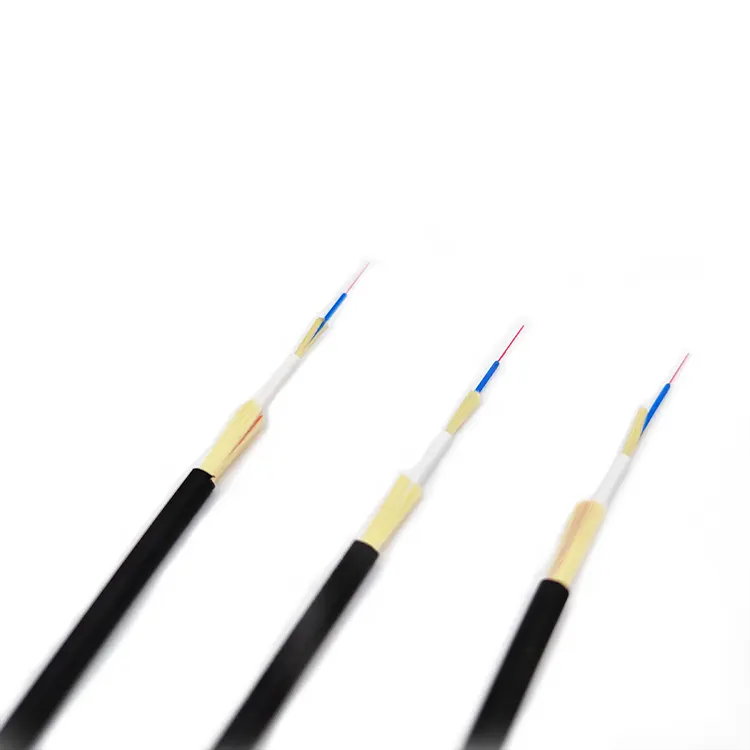

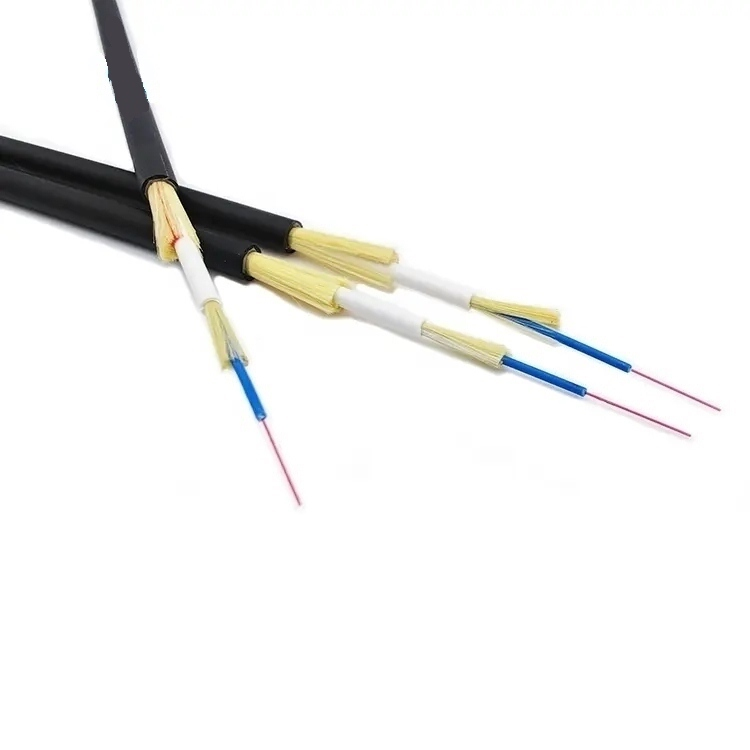

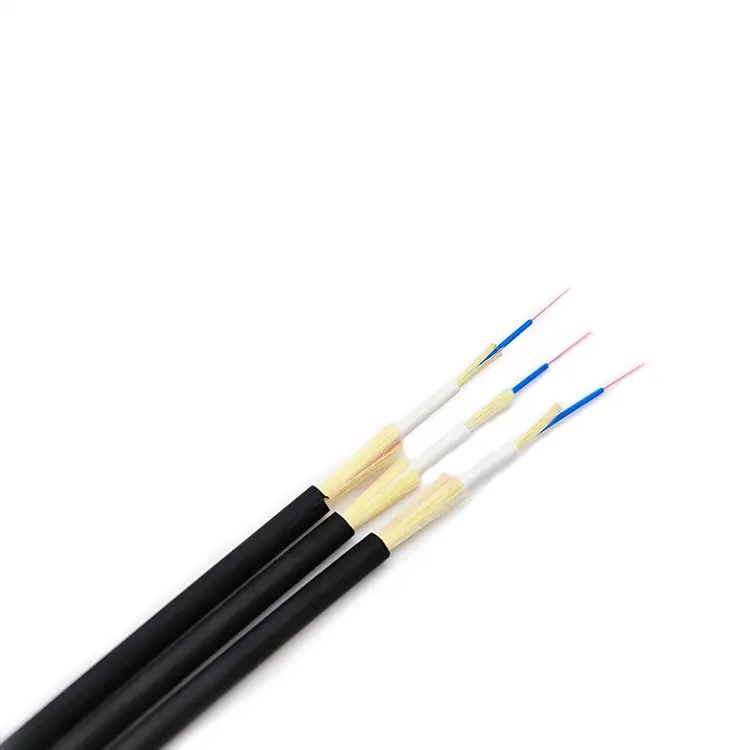

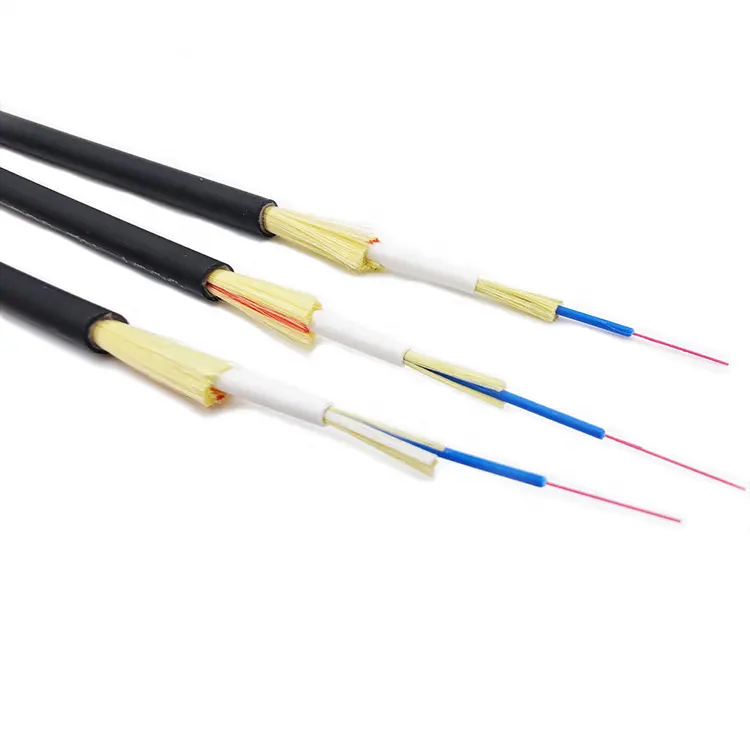

Double aramid yarns splicing fiber optic router cable price

Multi-purpose distribution cable use 900μm flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member units, and the cable is completed with a PVC or LSZH (low smoke, zero halogen, flame-retardant) jacket.

Product Name:splicing fiber optic cable,fiber optic router cable,optic fiber price,fiber cable splicing,patch cable fiber optic,lszh fiber optic cable

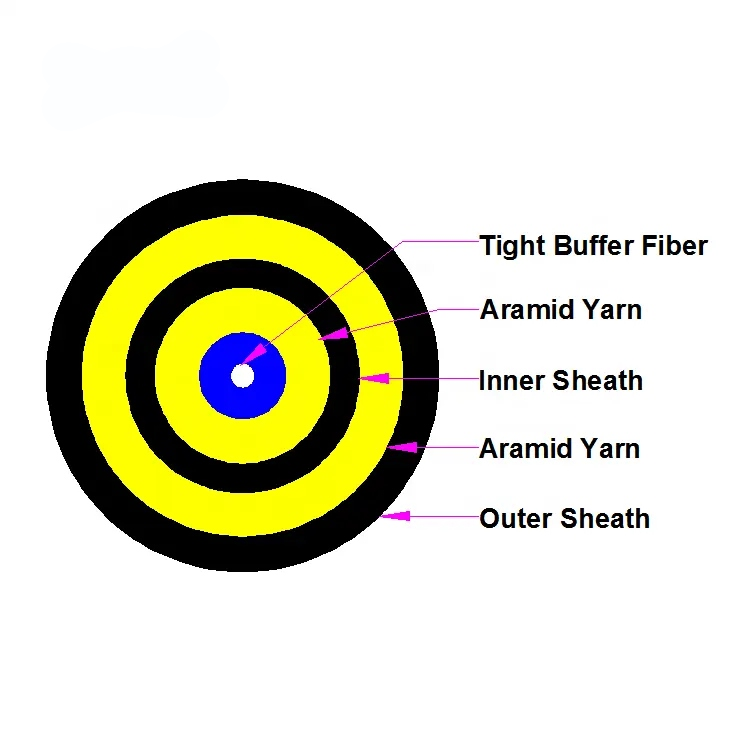

Cable Cross Section:

Technical Data

ITEM		Technical Parameters
Fiber	Fiber type	G657A
	Fiber count	1
	Color	Red
Tight Buffer	Material	LSZH
	Diameter	0.9mm
	Color	Blue
Strength member	Material	Aramid Yarn+ Water blocking aramid yarn
Inner Jacket	Material	LSZH Fire retardant
	Thickness	0.4mm (±0.05mm)
	Color	White
	Diameter	2.4mm(±0.2mm)
Strength member	Material	Aramid Yarn+ Water blocking aramid yarn
Outer jacket	Material	LSZH Fire retardant
	Color	Black
	Thickness	0.8mm (±0.1mm)
	Diameter	5.0mm (±0.2mm)

Optical Characteristics

Fiber Type	Attenuation				OFL	Valid mode band width	10G Ethernet link length SX	Min. bending radius
Condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm
Condition	Typical	Max.	Typical	Max.
Unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22	0.5/0.4						16
G657A1	0.36/0.22	0.5/0.4						10
G657A2	0.36/0.22	0.5/0.4						7.5
OM1			3.0/1.0	3.5/1.5	≥500/500	≥2000	≤300	30
OM2			3.0/1.0	3.5/1.5	≥200/500	≥4700	≤550	30
OM3			3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4			3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤350	30

Products Features

* Tight buffer fiber easystrip
* Tight buffer fiber has excellent flame-retardant performance

* Aramid yarn for excellent tensile strngth

* Low friction jacket to be chosen

Products Characteristics

A. Tight buffer fiber easystrip

B. Tight buffer fiber has excellent flame-retardant performance

C. Aramid yarn as strengthmember make cable have excellent tensile strength

D. The jacketanti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant andharmless to environment etc.

Application:

* Optical fiber jumper or pigtail

* Indoor riser level andplenum level cable distribution

* Interconnect between instruments, communication equipment.

Packing:

1 .The cables are packed in wooden drums andthen in carton box

2 .Standard delivery length is 1km/roll or percustomer’s requirements.

3 .Sheath Marking: The sheath marking are hotstamped on the sheath at one meter interval with white color. The accuracy ofthe length marking shall be 0 ~ +1%.
