25 Bar 8/6mm plastic pushfit microduct coupler connector

25 Bar 8/6mm plastic pushfit microduct coupler connector

Payment Type:	L/C,T/T,Paypal,others,Cash
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
Min. Order:	10 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: STR8/6mm

Brand: OEM

Origin: China

Certification: ISO,ROHS

Place Of Origin: China

Use: Microduct connection

Warranty Time: 12 months

IP Rate: IP68

Temp Resistance: -20~ +50℃

Body: Polycarbonate

Seal: NBR

Washer: Polyacetal

Lock Claws: Polyacetal

Tube Assembly: No tooling required

According To Standards: CEI EN 50411-2-8,EN 50411-2-5

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Carton or Customized

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

25 Bar 8/6mm plastic pushfit microduct coupler connector

Description of microduct coupler:

The connectors and end caps for microducts provide a quick, easy and secure connection or water sealing of microducts.

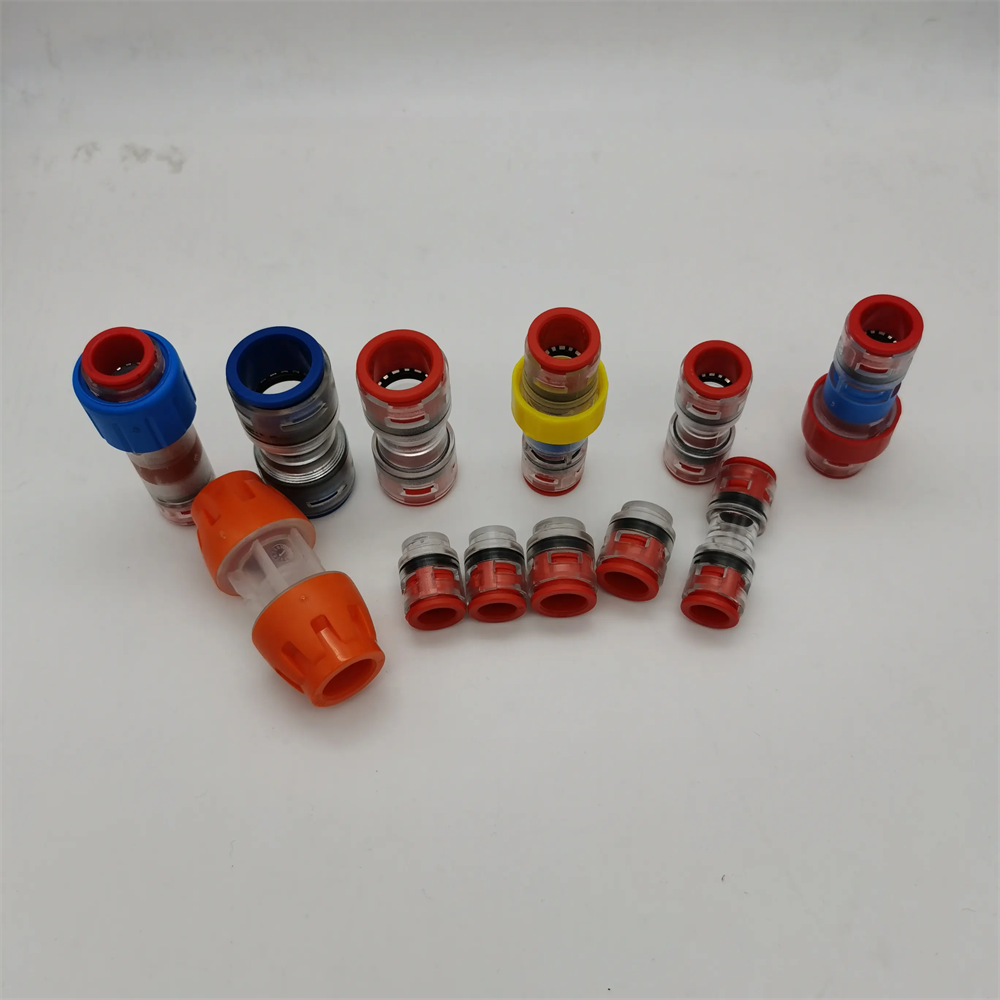

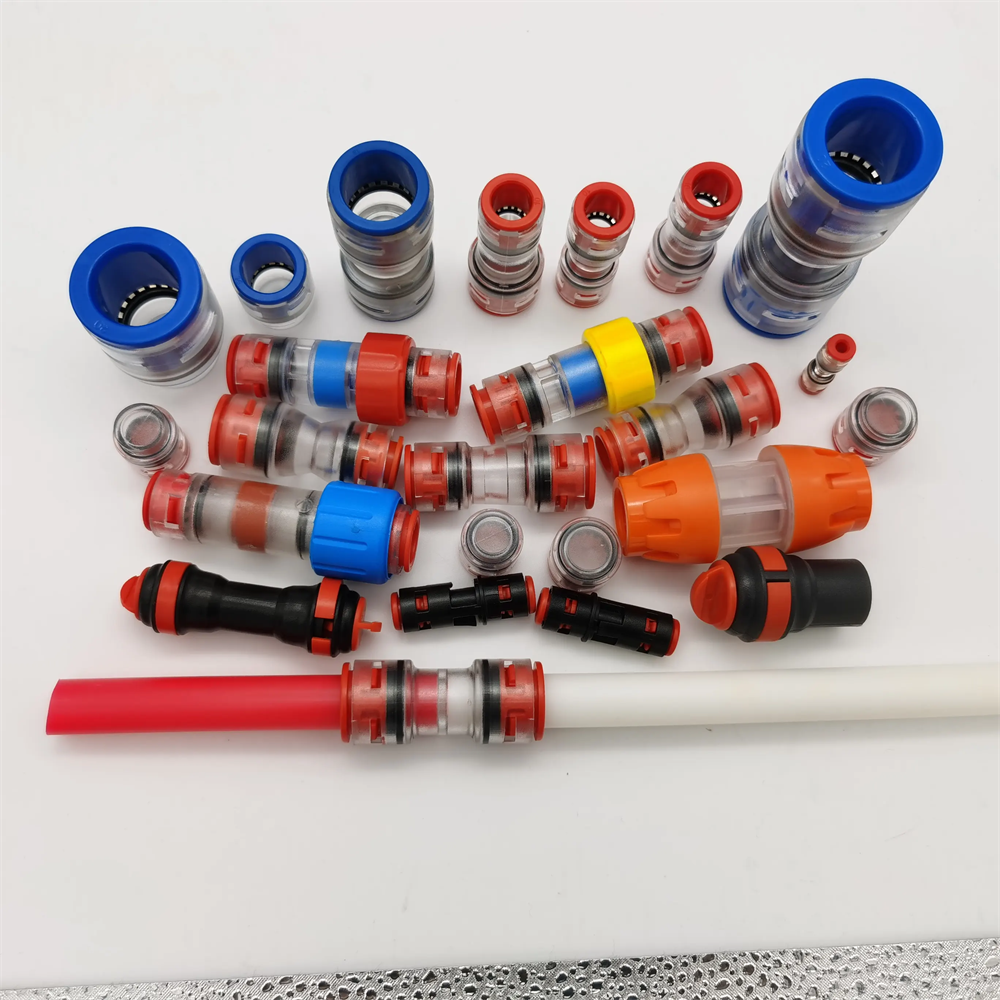

The product comes in three different versions:

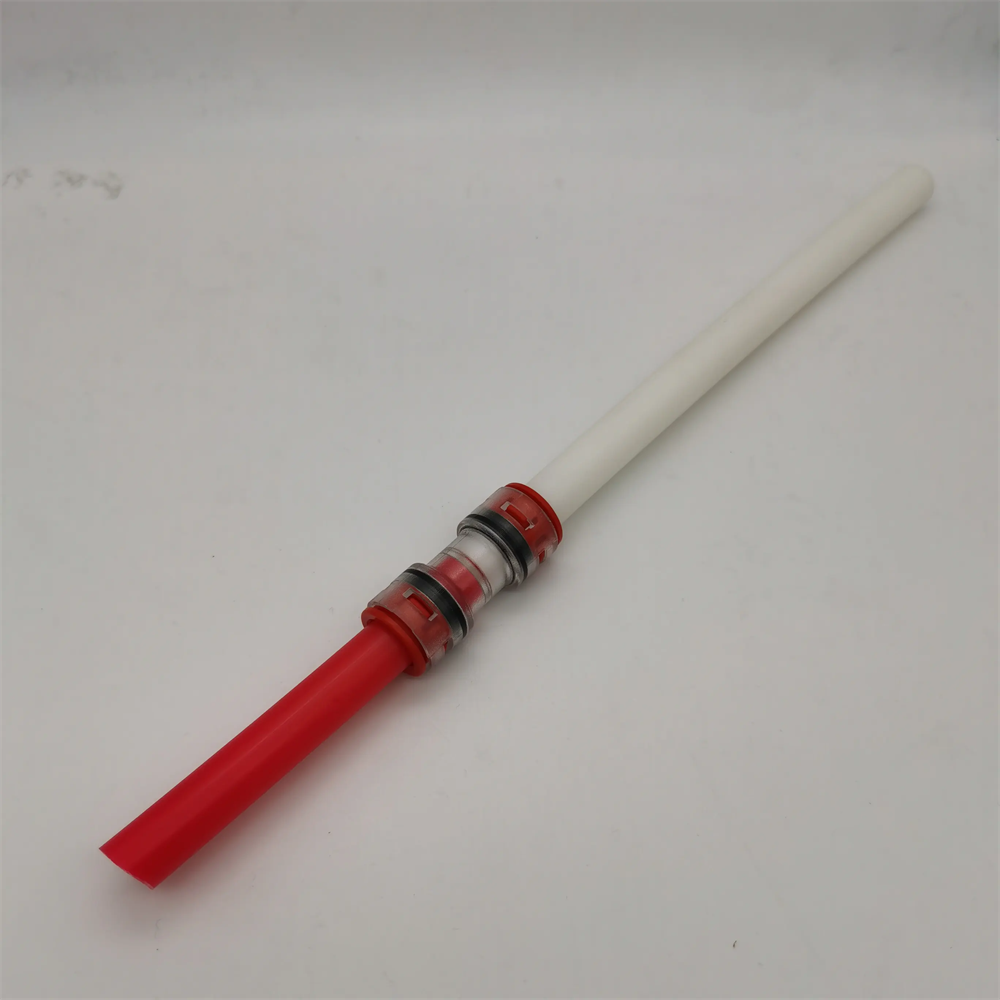

* Straight Connectors are used to join sections of microducts

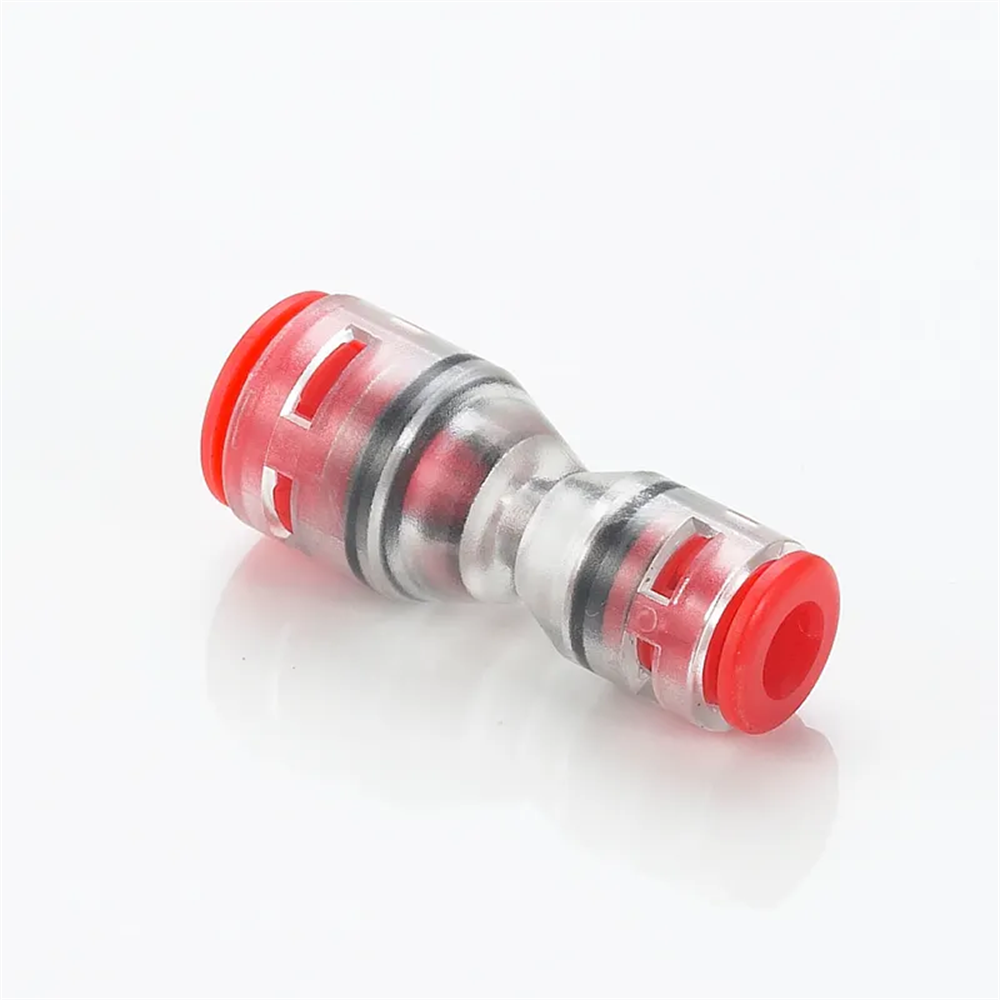

* Reducer Connectors are used to join microducts of different dimensions
* End Stops are used to block open duct ends and prevent water and dirt from entering the microduct

Product Name:pushfit Microduct Connector,plastic microduct connector,microduct coupler connector

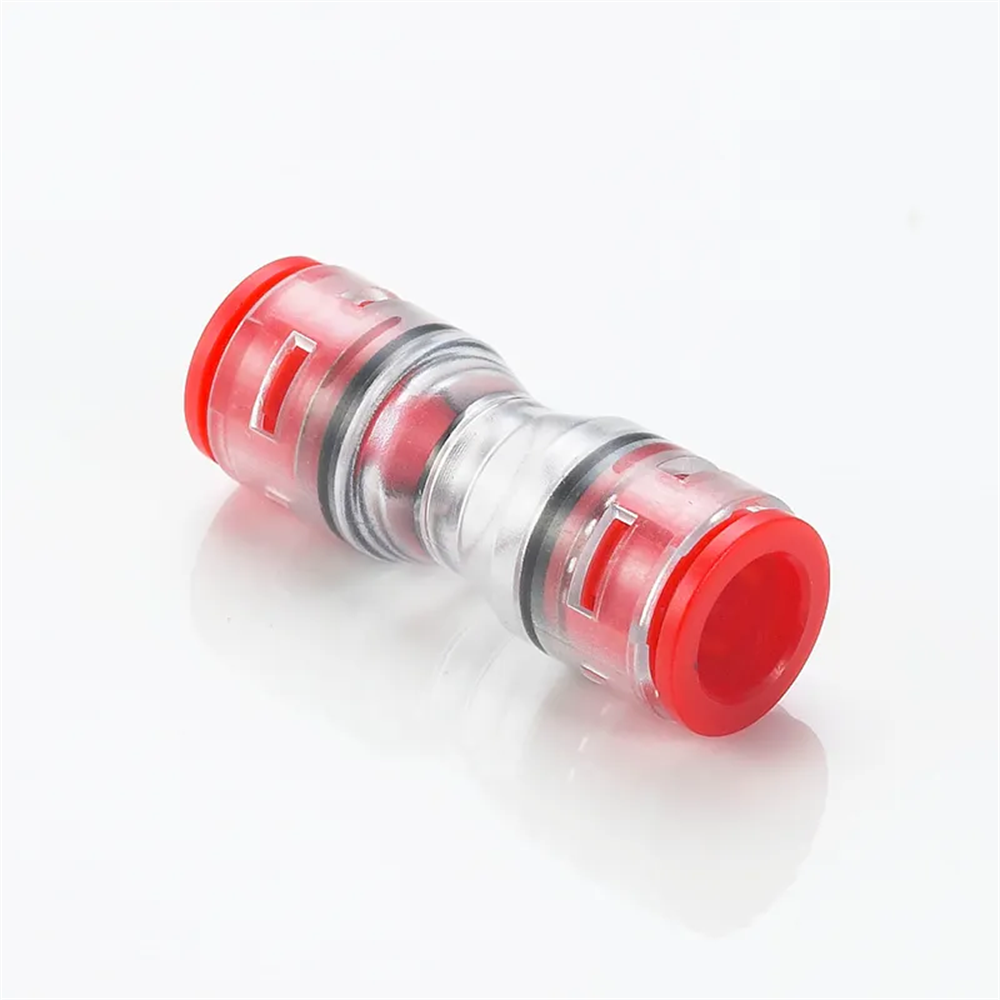

Product Picture for straight microduct coupler:

Specification of microduct straight coupler:

item	value
Model Number	STR8/6mm
Type	Microduct Connector
Place of Origin	China
	Guangdong
Brand Name	GTOC
Use	FTTX
Warranty Time	12 Months
IP rate	IP68
Pressure Resistance	25 bar
Temp Resistance	-20~ +50℃

Material
Body:	polycarbonate	Seal:	NBR
Washer:	polyacetal	Lock Claws:	SUS
Collar:	polyacetal	Sleeve:	polyacetal

Sizes & Specifications
Size	Microduct OD/ID, mm	THR Bore
STR3/2.1	3/2.1	2.1
STR4/2.5	4/2.5	2.5
STR5/2.1	5/2.1	2.1
STR5/3.5	5/3.5	3.5
STR6/4	6/4	4
STR7/3.5	7/3.5	3.5
STR7/4	7/4	4
STR8/4	8/4	4
STR8/5	8/5	5
STR8/6	8/6	6
STR10/6	10/6	6
STR10/8	10/8	8
STR12/8	12/8	8
STR12/10	12/10	10
STR14/10	14/10	10
STR14/12	14/12	12
STR16/12	16/12	12
STR16/14	16/14	14
STR18/12	18/12	12
STR18/14	18/14	14
STR20/16	20/16	16
STR22/18	22/18	18
Other sizes are available upon request for customization.

Application for fiber optic duct connector:

For installation directly into the ground, use versions with external cover.The connectors are tested for best functionality in combination with the air blown fibers, nano cables and micro cables.

Design

The design of the connector incorporates pressure tight seals with O-rings and internal steel teeth that prevents accidentalseparation of the connector from the microduct once installed.Removal of the duct is achieved by pushing the green collet inwards.To increase crush resistance when installed direct buried, an external plastic cover is used. The cover prevent the accidental release of collets during installation and provide protection and impact resistance in use.

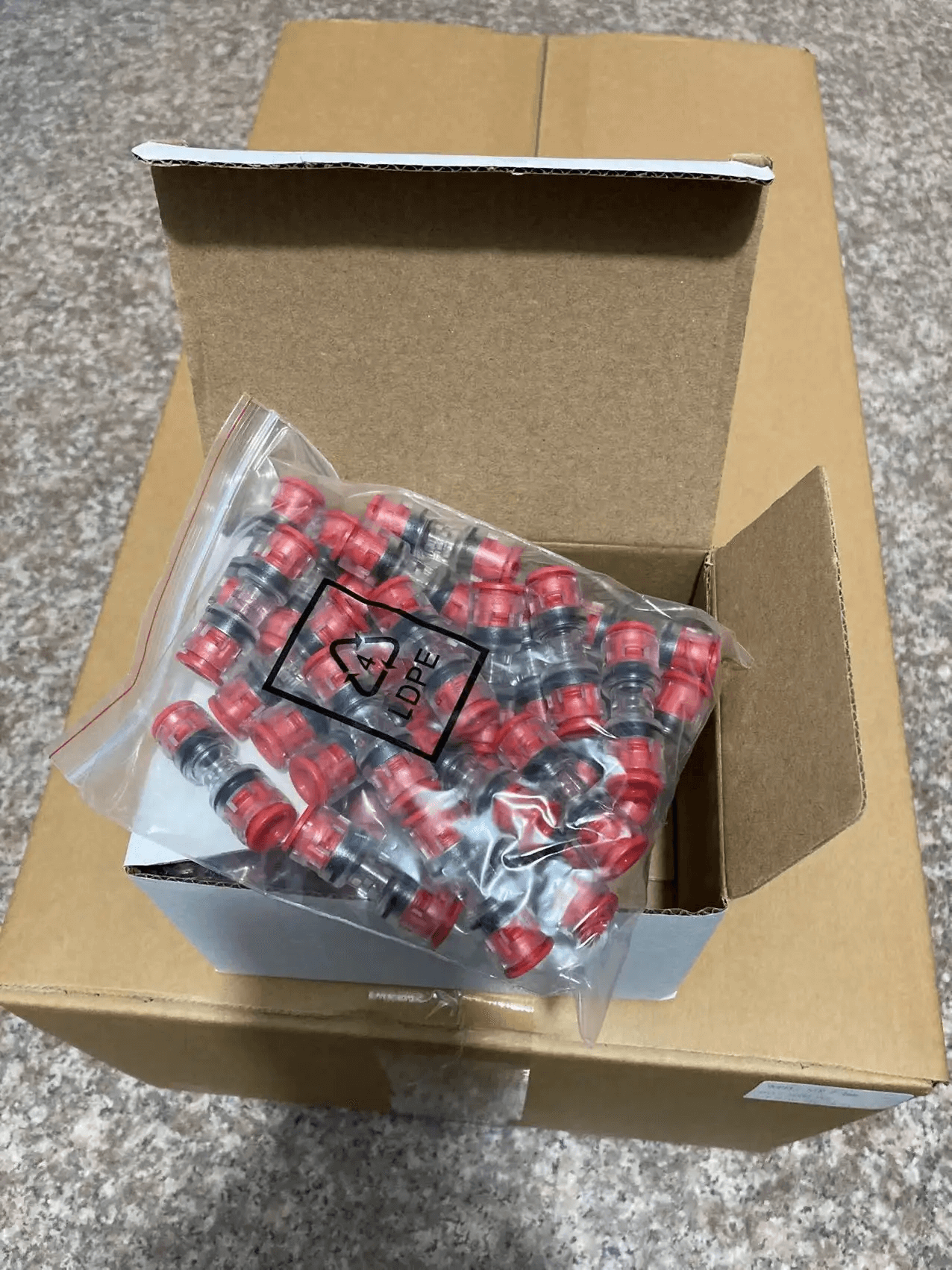

Packing & Delivery
