Home> Products> Outdoor Fiber Optic Cable> Aerial Fiber Optic Cable> Aramid Yarns Tight Access Building Fiber Optic Cable
Aramid Yarns Tight Access Building Fiber Optic Cable
Aramid Yarns Tight Access Building Fiber Optic Cable
Aramid Yarns Tight Access Building Fiber Optic Cable
Aramid Yarns Tight Access Building Fiber Optic Cable
Aramid Yarns Tight Access Building Fiber Optic Cable
Aramid Yarns Tight Access Building Fiber Optic Cable
Aramid Yarns Tight Access Building Fiber Optic Cable
Aramid Yarns Tight Access Building Fiber Optic Cable
Aramid Yarns Tight Access Building Fiber Optic Cable

Aramid Yarns Tight Access Building Fiber Optic Cable

Payment Type:L/C,T/T,Paypal,others
Incoterm:FOB,CFR,CIF,EXW,FAS,FCA,DDU,Express Delivery
Min. Order:1 Kilometer
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.: GJYFJU/GJYFJH

Brand: OEM

Origin: China

Certification: ISO9001/CE/RoHS

Place Of Origin: China

Number Of Cores: ≥ 10

Cable Structure: Micro ADSS Tight buffer

Application: Indoor/Outdoor access building

Fiber Options: G657A1, G657A2

Fiber Count: 1-24 cores

Installation Tensile: 1000N

Bend Radius (Under Installation): 20 x External Diameter of cable

Strength Member: Kevlar Aramid Yarn

Material Of Jacket: TPU or LSZH

Certification: ISO9001/CE/RoHS

Warranty (Year): 2

Packaging & Delivery
Selling Units: Kilometer
Package Type: wooden reel ,iron-wooden reel
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description
12 Core Aramid Yarns Tight Access Building fiber optic cable

Product Introduction:
Tight buffered Fibers, Dielectric Strength Member and Flame retardant TPU (Thermoplastic Polyurethane).This specification covers the general requirements for fiber optic telecommunication cables.The optical cable laid in the buildings is used in horizontal area and main trunk and is used to connect pigtail or connector, and it’s used for gigabit or ten-gigabit optical fiber communication.
Product Name:optical fiber 2 core,4f fiber optic cable price,6 fiber cable,ofc cable 6 core price,2 core single mode fiber optic cable,home fiber optic network

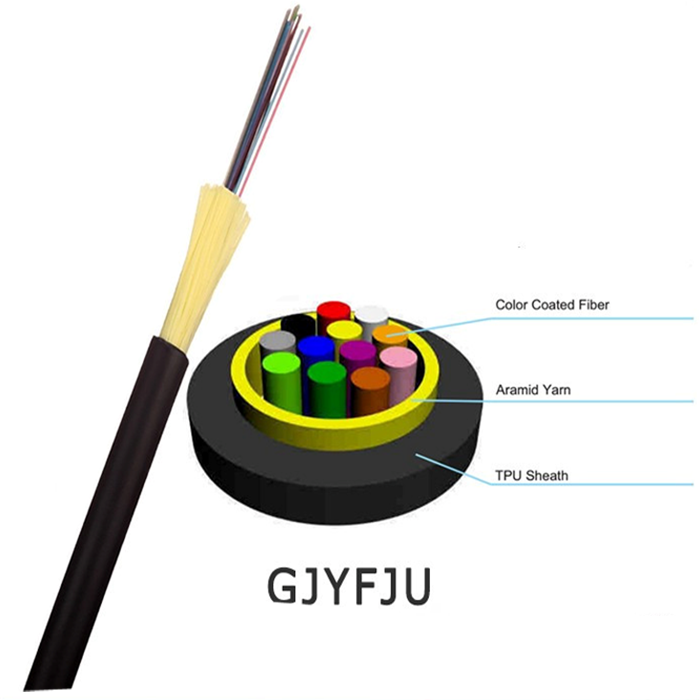

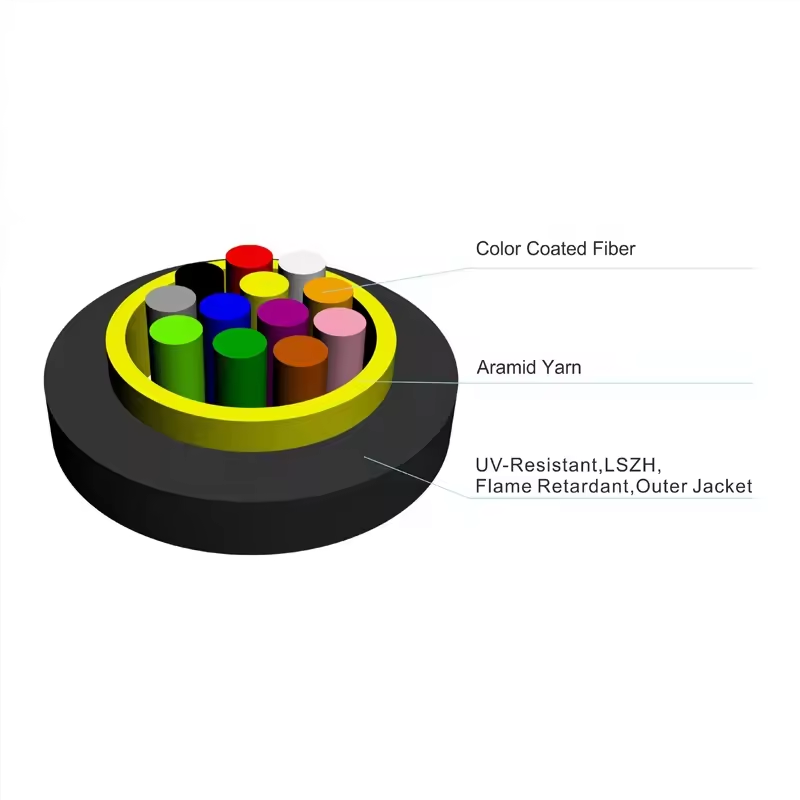

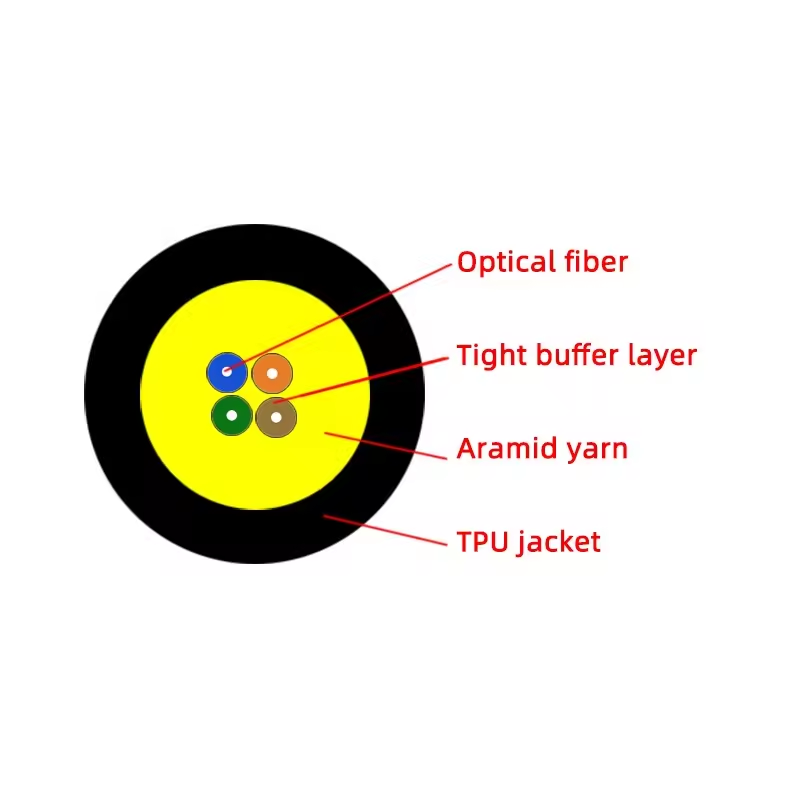

Cable Cross Section:
home fiber optic network
tight buffered outdoor fiber
Parameter:
item
value
Cable Structure
Tight buffer/loose tube cable
Application
Indoor/Outdoor access building
Fiber options
G657A1, G657A2
Fiber count
1-12cores
Installation tensile
1000N
Bend radius (Under installation)
20 x External Diameter of cable
Strength member
Kevlar Aramid Yarn
Material of jacket
TPU

Standard:
ISO/IEC11801 : 2008,YD/T1258-2005
Application:
Indoor cabling
Suitable for aerial dropping

Product Features:
1. Peripheral strengthening of high modulus aramid yarn
2. Use single core cable as basic unit
3. Small out diameter, terminal direct physical protection is provided
4. Soft, small bending radius and good stress and strain performance
5. Flame retardant or non combustible outside protection can be chosen and LSZH sheath can be provided

fiber optic network solutionsofc cable 6 core price12 f fiber cable price
Supply Ability & Additional Information

Packaging: wooden reel ,iron-wooden reel

Productivity: 1000 Kilometer/Kilometers per

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 1000 Kilometer/Kilometers per Month

Certificate: ISO9001/CE/RoHS

HS Code: 8544700000

Port: Shenzhen,Guangzhou

Payment Type: L/C,T/T,Paypal,others

Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,DDU,Express Delivery
