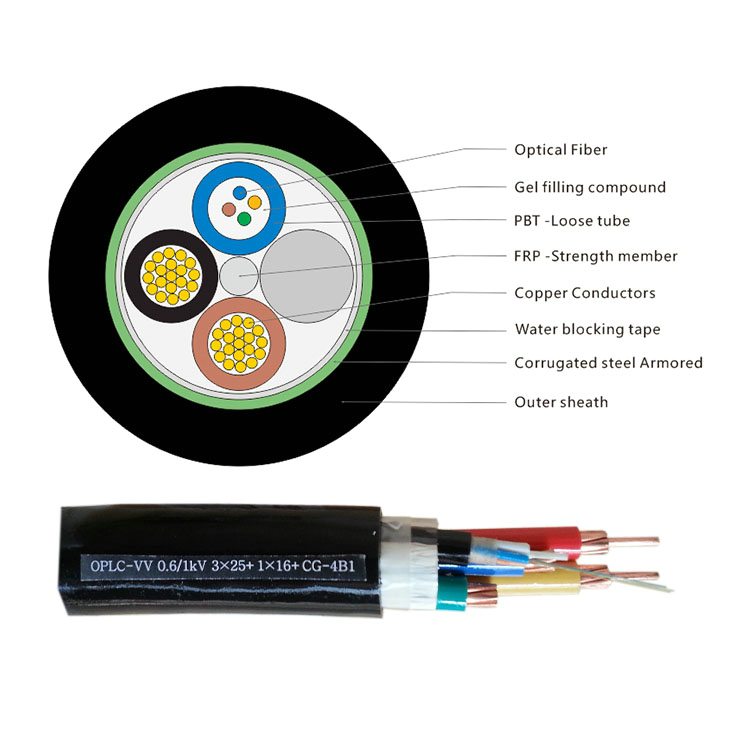

12cores GDXTW GDTS Composite Hybrid Fiber Optic Cable

Characteristics:

(1)Short outer diameter, light weight, small space usage(usually a series of problems can be solved with multiple cables, which can be replaced by a compound cable);
(2) low procurement costs, low construction costs and low network construction costs;
(3) it has excellent bending performance and good side pressure resistance, and is convenient for construction;
(4) it also provides multiple transmission technologies, with high adaptability to equipment, strong expansibility and wide application scope;
(5) provide huge bandwidth access;
(6) save cost, use optical fiber as a reservation for household, and avoid secondary wiring;
(7) to solve the problem of equipment power consumption in network construction (to avoid redundant power supply lines).

Standards:

Comply with Standard YD/T 901 as well as IEC 60794-1.

Tempeature:

Operating /Storage Temperature Range:-40°c +70°c

Applicaiton:

The cable Laying method: Self-supporting Aerial
Suitable for long-distance communication, local trunk line, CATV & computer networks system.
Fiber type: Single-mode/Multimode.

Packaging Details：

1-5KM per roll. Packed by steel drum . Other packing available according to client`s Request.

Sheath Mark:

The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required; b. Standard Code(Product Type, Fiber Type,Fiber Count); c. Year of manufacture: 7 years; d. Length marking in meters.

Port：

Shanghai/Guangzhou/Shenzhen

Lead Time：

Note:

The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment.
