Model No.: PA50 / PA70
Brand: OEM
Origin: China
Certification: CE/ISO9001/ROHS
Product Name: Suspension Clamp
Certificate: CE/ISO9001/ROHS
Application: Hanging Cable
Material: PA66, Aluminum Alloy
OEM/ODM: Available
Samples: Free
Usage: Electrical Cable Fitting
Keyword: ADSS Cable Suspension
Highlight: Dead End Clamp
Breaking Load: 4~15KN
| Selling Units: | Set/Sets |
| Package Type: | Carton Box |
The file is encrypted. Please fill in the following information to continue accessing it
Aerial ADSS cable Plastic Dead End Suspension Clamp
Description for high tension cable clamp:
Dead End Clamp body is made of high mechanical strength and weather resistant insulation material.
Special designed clip is used to prevent thebail sipping from the body.
Tension Clamp Standard: NFC33-042
Product Name:adss tension clamp,fiber tension clamp,Overhead Cable Fittings

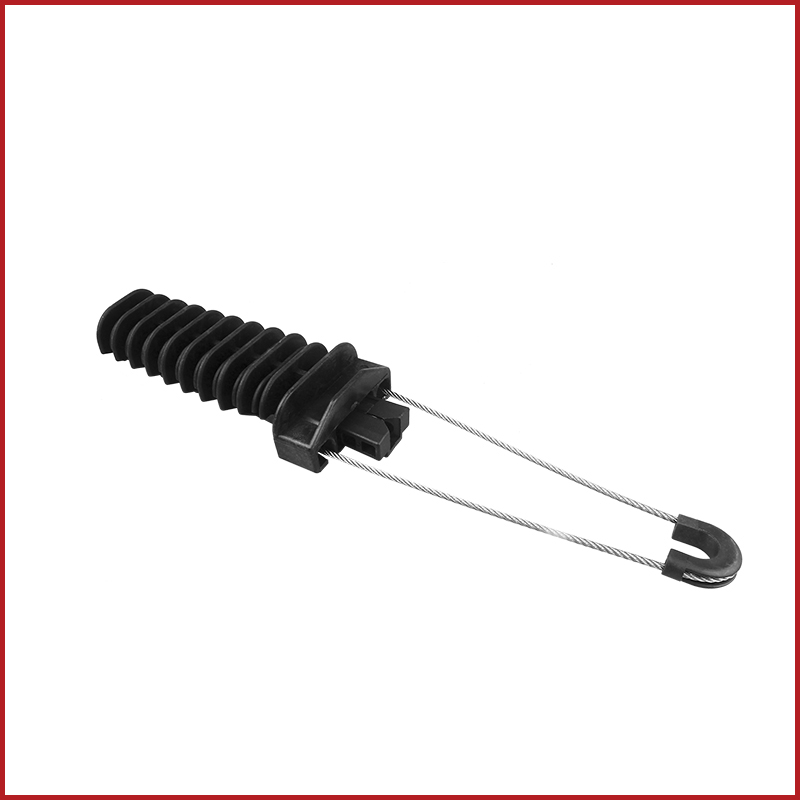

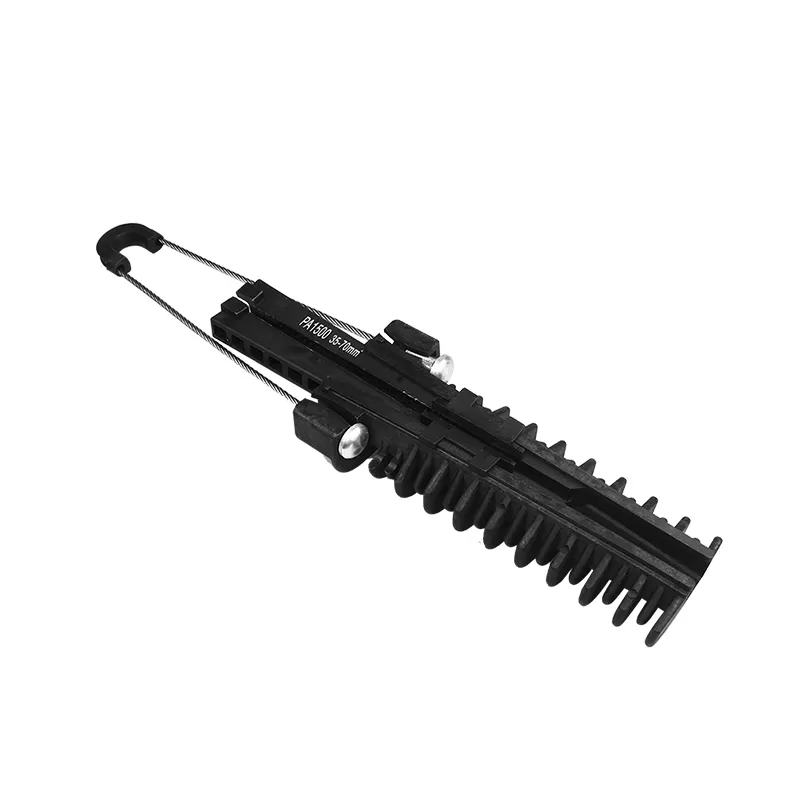

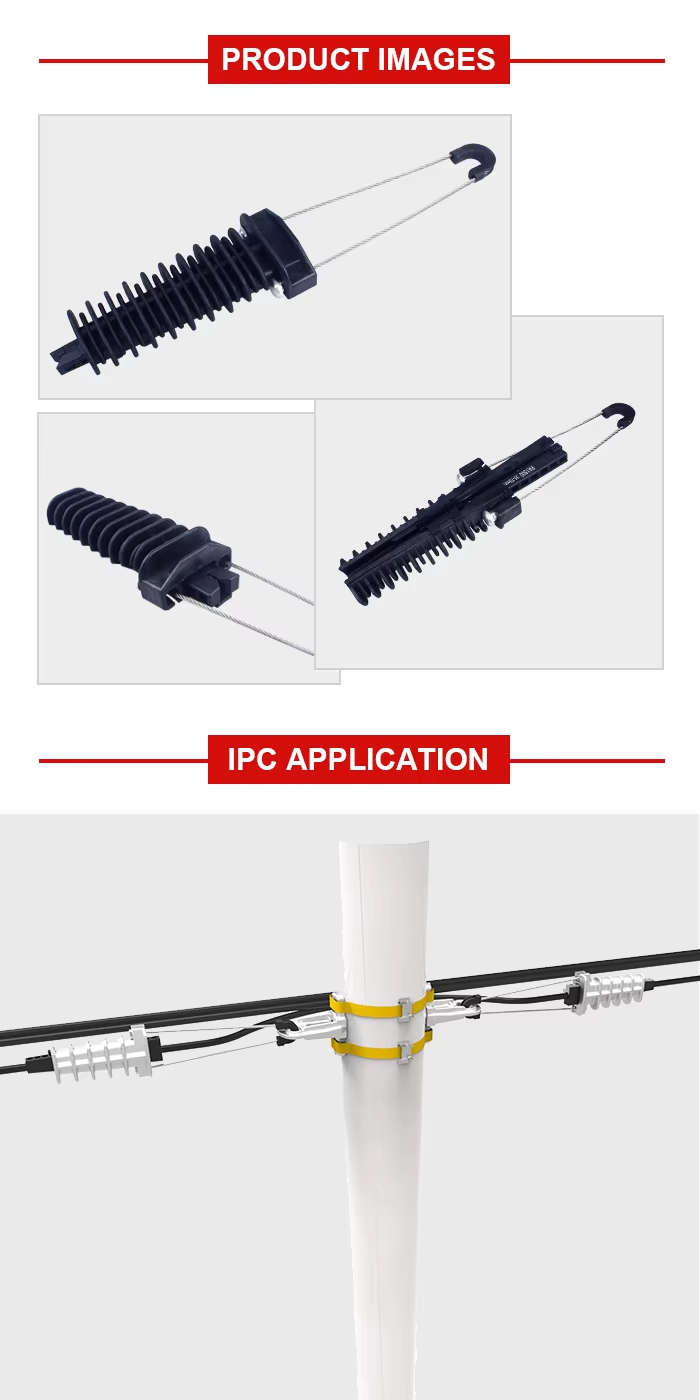

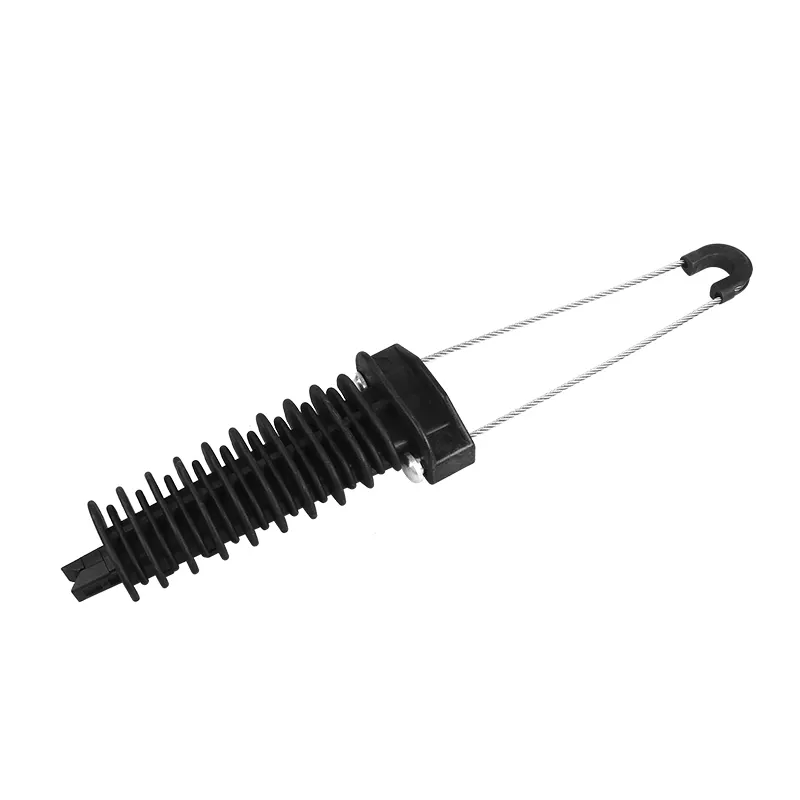

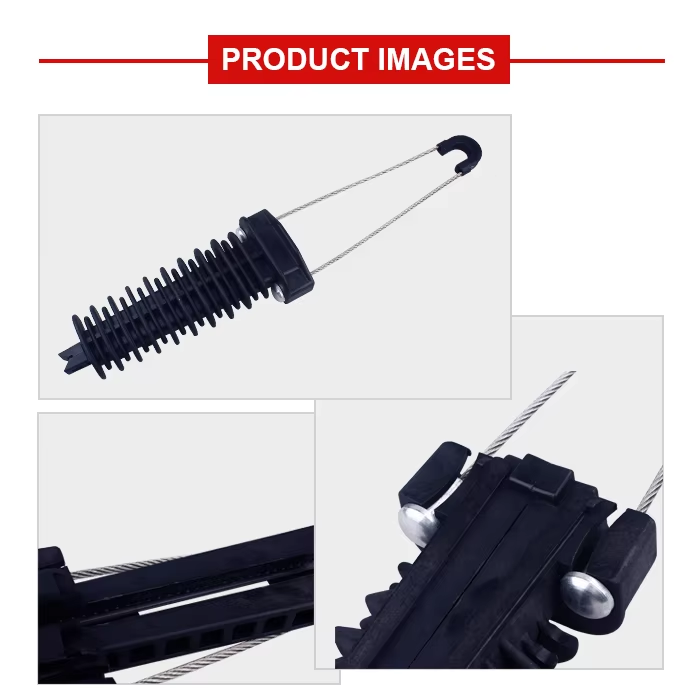

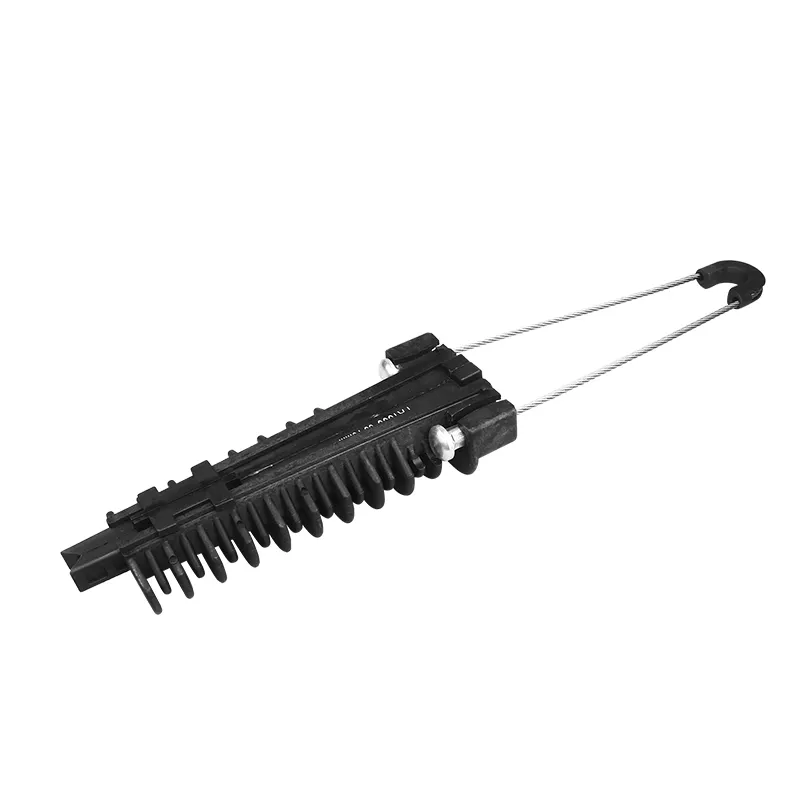

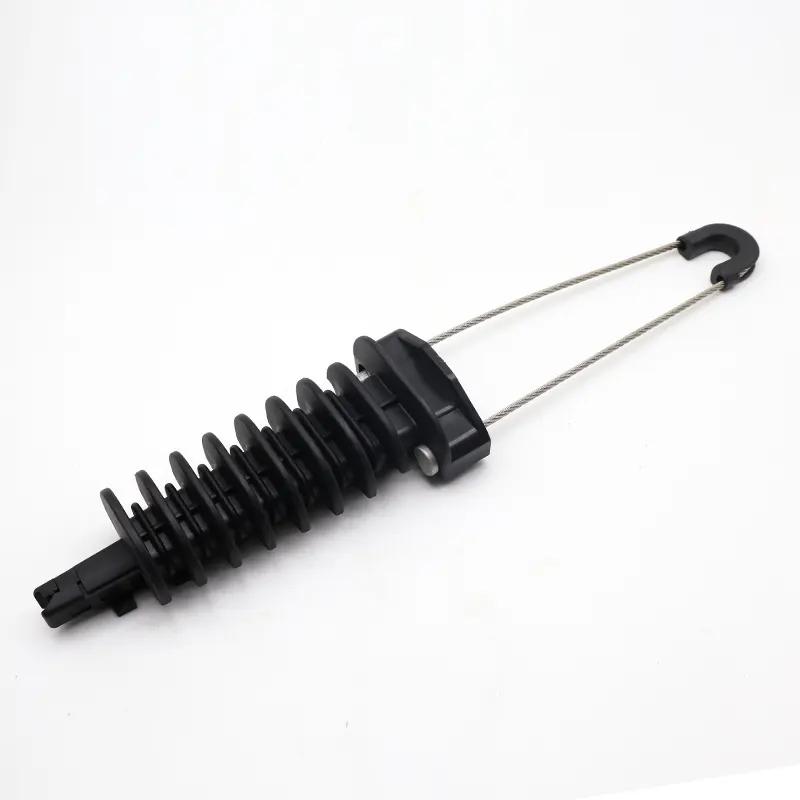

Product Picture for drop cable clamp:
Technical Specification for tension cable clamp:
| Dimensions | |||
| Code | Cable Size | Breaking Load | Weight |
| PA50 | 25-50mm² | 6kN | 420g |
| PA70 | 25-70mm² | 8kN | 580g |
| Specification | |||
| Use: | For dead-ending of cables with round shape. | ||
| Construction | |||
| Component | Material | ||
| Body and Wedge | Weather and UV-radiation resistant thermoplastic | ||
| Bail Set | Stainless Steel 201 | ||
| Installation: | The clamp is opened and the messenger wire is inserted between the wedge and the body. The clamp is then closed and strained. | ||
| Standard | NFC 33-042; EN 50-483 | ||
The tension clamp is designed for service line with 1 conductor.
-Clamp body is made of high mechanical strength and weather resistant insulation material.
-Special designed clip is used to prevent the bail slippingfrom the body.
Packaging for drop wire clamp
1. 30 pieces in one inner box, 150 pieces in one carton.
Carton Size:45.5*36*21cm
N.W./G.W.:23/22KGS
2. Specific packaging can be made to order.
Shipping
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.
And also can send by sea or air, kindly send me the port of yours.
Packaging: Carton Box
Productivity: 5000 pieces per week
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 5000 pieces per week
Certificate: CE/ISO9001/ROHS
HS Code: 7616999000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
