ADSS suspension dead end fiber optic cable clamp

ADSS suspension dead end fiber optic cable clamp

Payment Type:	L/C,T/T
Incoterm:	FOB,DDP,CFR,DDU,CIF,EXW,FAS,Express Delivery,FCA
Min. Order:	50 Set/Sets
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: HC

Brand: OEM

Origin: China

Certification: CE, ISO9001,ROHS,Test Report

Place Of Origin: China

Product Name: ADSS Suspension Clamp

Cross-section: 25-95mm2

Breaking Load: 4KN

Single Package Size: 10X10X5 cm

Single Gross Weight: 0.300 kg

OEM/ODM: Offer

Certificate: CE,ISO9001,Test Report

Keyword: j hook suspension clamp

Highlight: Fiber Optical Bracket

Useage: ADSS cable

Packaging & Delivery

Selling Units:	Set/Sets
Package Type:	Individual Package,Carton Box
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

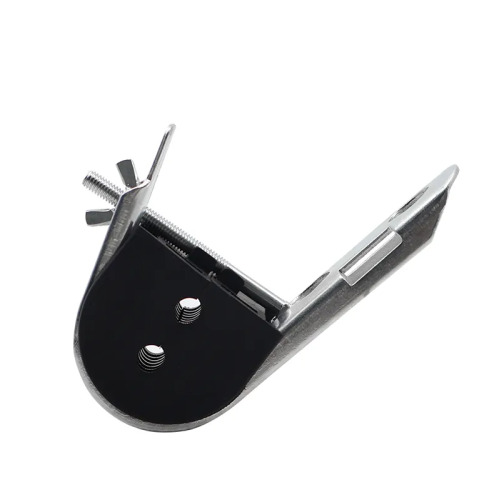

ADSS suspension dead end fiber optic cable clamp

Description for tension cable clamp:

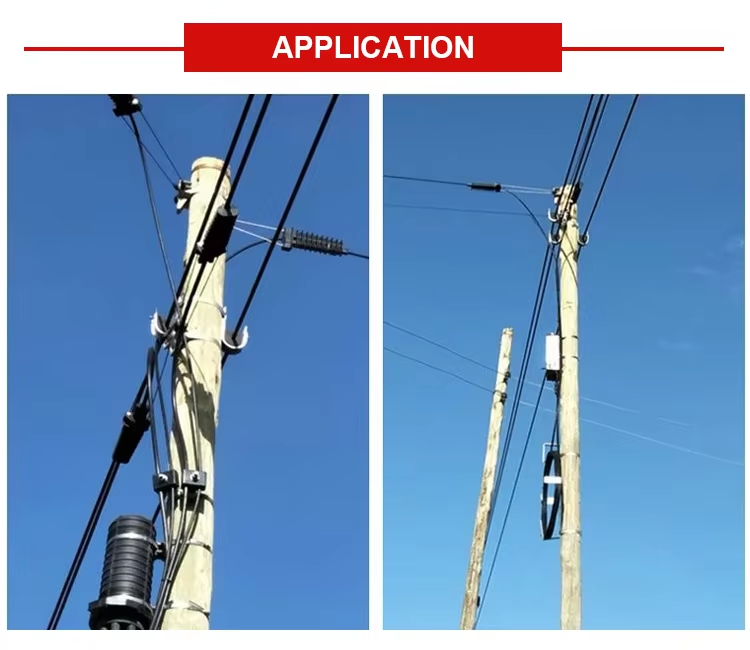

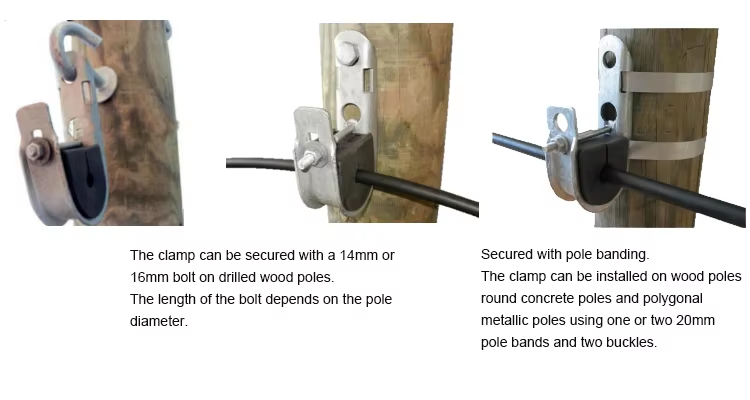

Hook clamps are designed to provide a suspension for 10 to 20 mmaerial ADSS cables at intermediate poles on cable routes with angle <20 on access networks (spans up to 100 m). 2.The suspension clamp for ADSS cable consists of a galvanized steel J hook, a neoprene sleeve and tightening screw. 3.The clamp may be installed on poles using either a pig tail bolt or 2 pole bands.

ADSS (All-Dielectric Self-Supporting) suspension dead-end fiber optic cable clamps are specialized hardware components used in the installation and maintenance of ADSS cables. These clamps are designed to securely hold the ADSS cable at its endpoints or suspension points on utility poles, towers, or other structures. The primary function of these clamps is to provide mechanical support and anchoring for the cable, ensuring that it remains stable and secure under various environmental conditions.

Product Name:clamp dead end,fiber optic cable clamp,fiber optic clamp

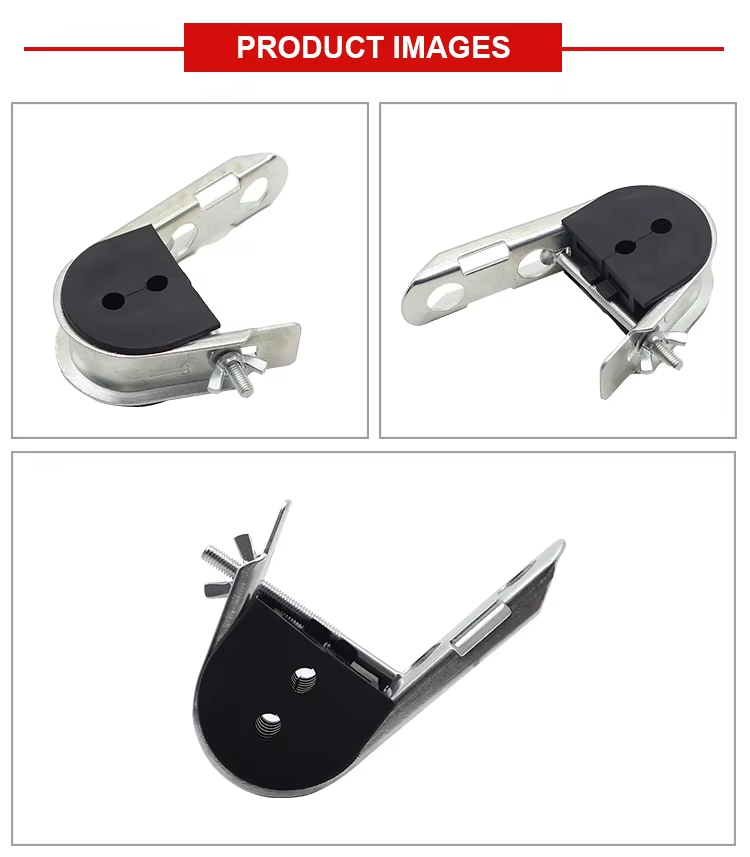

Product Picture for high tension cable clamp:

Technical Parameter for drop cable clamp:

Type	Cable Diameter (mm)	Breaking Load(kN)
HC-5-8	5-8	4
HC-8-12	8-12	4
HC-10-15	10-15	4
HC-15-20	12-20	4
HC-10-16S	10-16	4

Packging for drop wire clamp:

1. Normal package: inner bag+carton

2.Specific packaging can be made to order.

Shipping :

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account. And also can send by sea or air, kindly send me the port of yours.

Supply Ability & Additional Information

Packaging: Individual Package,Carton Box

Productivity: 5000 pieces per week

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 5000 pieces per week

Certificate: CE, ISO9001,ROHS,Test Report

HS Code: 7616999000

Port: Shenzhen,Guangzhou

Payment Type: L/C,T/T

Incoterm: FOB,DDP,CFR,DDU,CIF,EXW,FAS,Express Delivery,FCA
