Model No.: OTO Terminal Box
Brand: OEM
Origin: China
Certification: ISO,ROHS
Product Name: FTTH faceplate
Application: FTTH FTTB FTTX Network
Connector Type: SC/LC/FC/ST
Number Of Port: 1/2/4
Keyword: OTO Terminal Box , Fiber Optical Terminal box
Cable Dia: 3mm round cable or 2x3mm flat cable
Material: PC, ABS
Mode: Indoor Wall Mounted
Certification: ISO,ROHS
| Selling Units: | Piece/Pieces |
| Package Type: | Individual package,carton box |
The file is encrypted. Please fill in the following information to continue accessing it
FTTH 4 Port Indoor fiber patch panel Terminal Box
White FTTH Fiber Optic Patchcord With OTO Terminal Box
Fiber Optic Patchcord Terminal Box , is a length of fiber cable fitted with LC, SC, FC,MTRJ or ST fiber connectors at each end.Fiber patchcord also come in hybrid varieties with one type of connector on one end and another type of connector on the other like this one. Jumpers are used to connect end devices or network hardware to the structured cabling system.
Product Name:4 port fiber patch panel,indoor fiber termination box,fiber patch panel 4 port,fiber distribution terminal,ftth box,ftth terminal box,fiber access terminal box,access terminal box,86 faceplate,ftth terminal,ftth box 2 port,4 port fiber termination box,ftth box price,

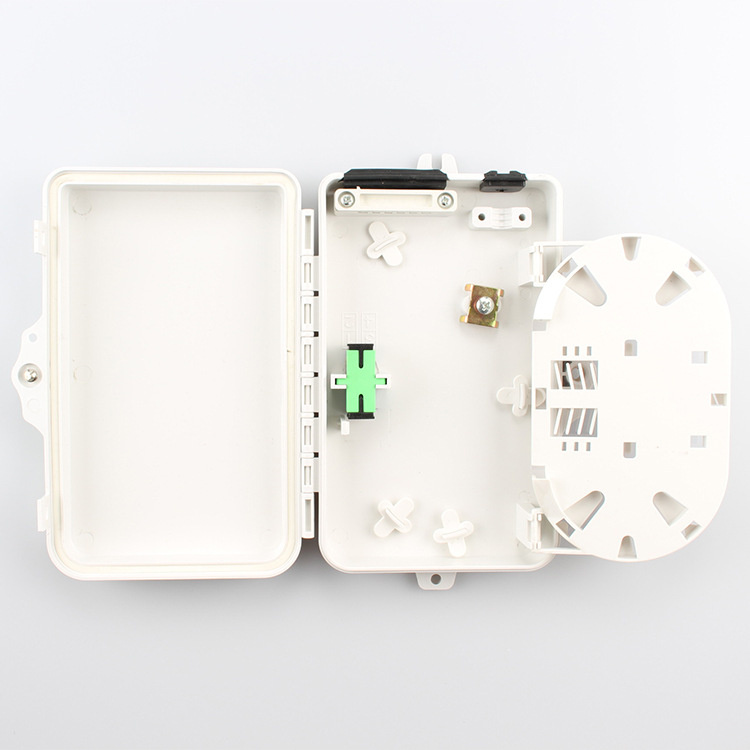

Product Picture:
1. Terminal Box Specification:
| Fiber Type/Terminal Box | SM | MM | |||
| Normal Fiber OD | 125±0.2um | 125±0.2um | |||
| Connector Type | SC,FC,ST, E-2000, LC, MU, DIN | MTRJ | SC,FC,ST, E-2000, LC, MU | MTRJ | |
| Insertion loss(Typical) | 0.2dB | 0.4dB | 0.2dB | 0.4dB | |
| Insertion loss(Max) | 0.3dB | 0.5dB | 0.3dB | 0.5dB | |
| Return Loss(Typical) | PC | 50dB | 35 | ||
| UPC | 55dB | ||||
| APC | 65dB | ||||
| Mating Durability(500 C) | 0.2dB | ||||
| 0.Temperature Stability | 0.3dB | ||||
| Operation Temperature | -40°C~+85°C | ||||
| Storage Temperature | -40°C~+85°C | ||||
2. Ftth Termination Box Feature:
1. All kinds of optical fiber patch cord, optical cable, fiber patch cord, SM & MM available.
2. Standard & custom configurations.
3. Meets Telecordia-GR-326-CORE specifications.
4. Low insertion loss.
5. Ultra low back reflection.
6. For 3.0mm, 2.4mm, 2.0mm jacket or 900μ M buffer.
3. Fttb Box Application:
1. FTTH, LAN, PON & Optical CATV, Local ring net
2. Optical fiber communication system
3. Optical fiber test equipment
4. Optical fiber sensor
Packaging: Individual package,carton box
Productivity: 5000 pieces per day
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 5000 pieces per week
Certificate: ISO,ROHS
HS Code: 8536700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,D/P,Paypal,others,Cash
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
