Model No.: 8 Port FTTH Distsribution Box
Brand: OEM
Origin: China
Certification: ISO,ROSH
Mounting: Wall/Pole/Aerial
Connector: SC, LC
Material: PC, ABS
Application: Indoor, Outdoor
Color: Black, White, Grey
Port No.: 1X16/2X16/1X8/2X8
Usage: Splitter/Distribution FTTX
Use: FTTX
Certification: ROHS/ISO9001
Warranty Time: 1 year
| Selling Units: | Piece/Pieces |
| Package Type: | Individual Package,Carton Box |
The file is encrypted. Please fill in the following information to continue accessing it
8 Port Home Fiber Optic Distribution Termination Box
Description:
Fiber optic terminal box is available for the distribution and terminal connection for various kinds of
optical fiber system, especially suitable for mini-network terminal distribution, in which the optical
cables, patch cores or pigtails are connected.
Product Name:home termination box,fibre optic distribution box,fiber optic distribution box,ftth box,indoor fiber termination box,ftth terminal box,ftth boxes,outdoor fiber termination box,optical distribution box,fiber patch panel 4 port,fiber access terminal box,Fiber Optic Patch Panel 4 port,4 port fiber termination box,ftth termination box,fibre optic distribution box,Fiber Distribution Box price

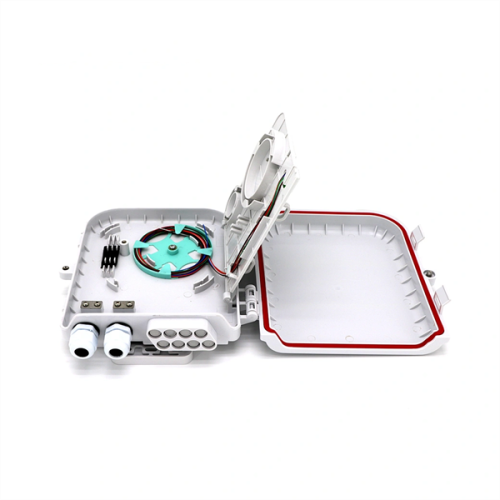

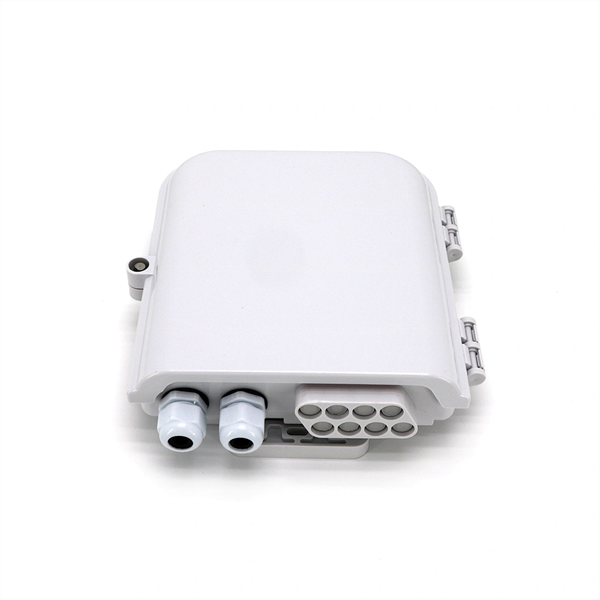

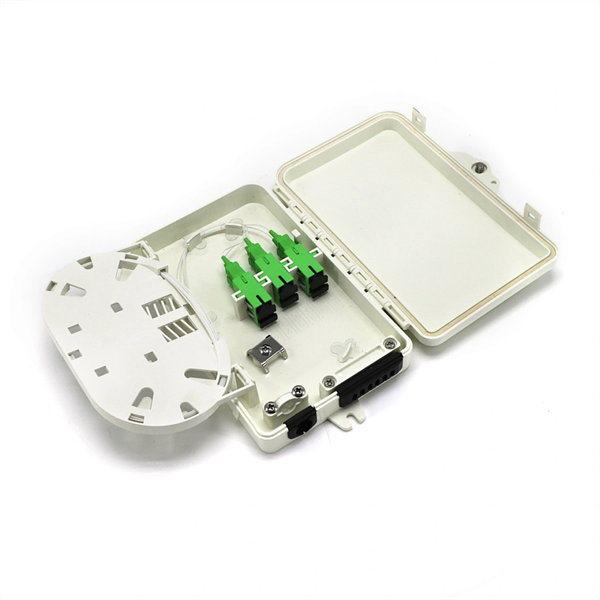

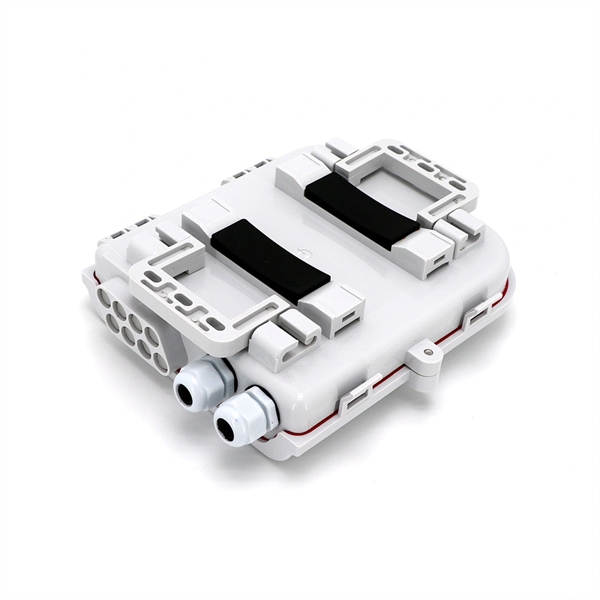

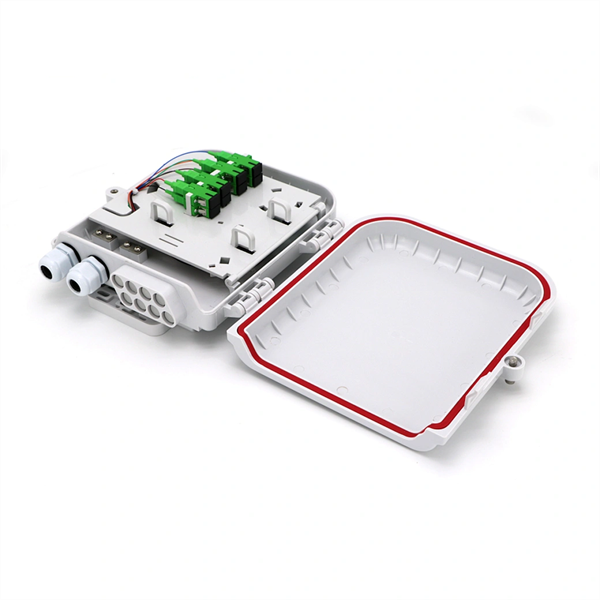

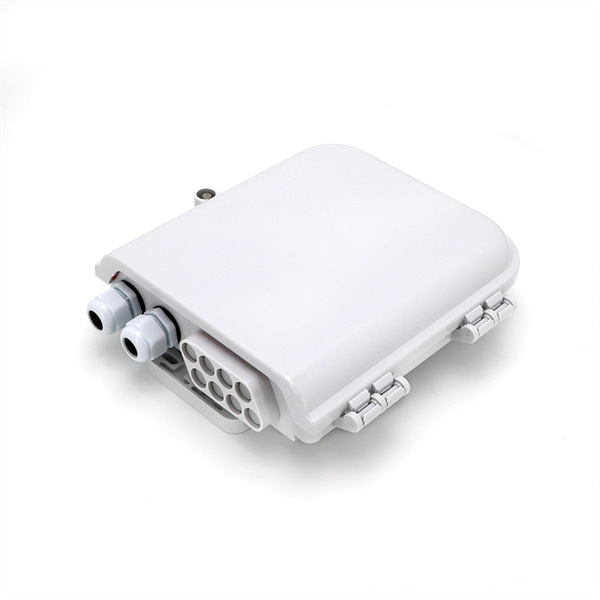

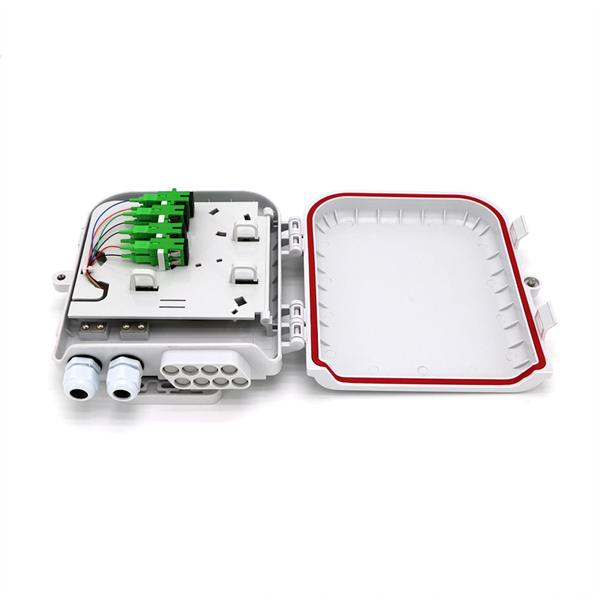

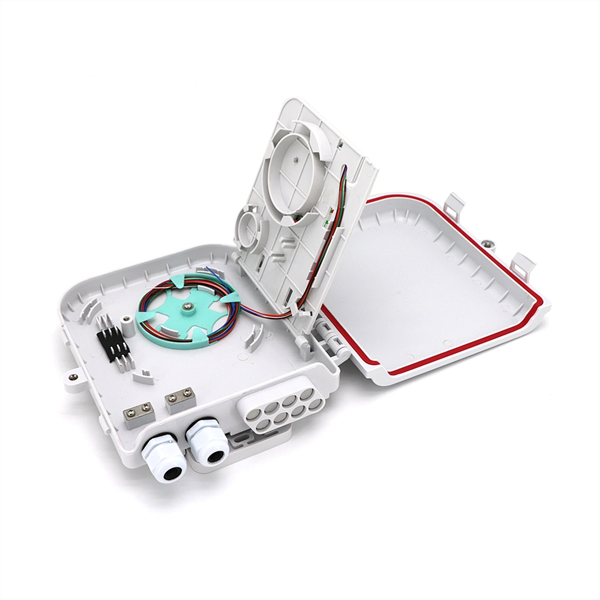

8 Port Waterproof Fiber Optic Distribution Box Product Picture:
| Type | FDB-04 | FDB-08 | FDB-16 | FDB-24 | FDB-32 | FDB-48 |
| Size(mm) | 210*140*40 | 205*215*55 | 260*320*90 | 295*335*115 | 350*340*120 | 350*340*120 |
| Cable ports | 4 | 8 | 16 | 24 | 32 | 48 |
| Weight(kg) | 0.35 | 0.75 | 1.4 | 2.1 | 3.5 | 5 |
| Model | TTI/FB-104C |
| Size(mm): L*W*H | 210*140*20 |
| Cable ports | 2 inlet, 16 outlet |
| Max capacity of splice | 16 Core(Single) |
| Net Weight (kg) | 0.45 |
| Outer carton weight (kg) | 15.6 |
| Package | 20PCS/CTN |
FTTH Fiber Termination Box Features:
The box is made of PC+ABS, and lifetime is more than 20 years.
Bi-layer structure design. The upper layer is for optical splitter, the other layer is for fiber splicing.
Easy to operate. Usually installed as wall mounted in the building or at the green belt.
It can accommodate 8 pcs SC-SC, or SC-FC adapters.
It can be designed to client requirements.
It meets YD/T988-2007 standards.
It also can be used under -40°c.
FTTH Termination Box Application:
FTTH access network
CATV Networks
Telecommunication Networks
Data communications Networks
Operation conditions:
Temperatures:-40℃ -- 60℃
Humidity:93% at 40℃
Air Pressure:62kPa – 101kPa
Related Distribution Box:
Packaging: Individual Package,Carton Box
Productivity: 5000 pieces per week
Transportation: Ocean,Land,Air
Place of Origin: China
Supply Ability: 5000 pieces per week
Certificate: ISO,ROSH
HS Code: 8536700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,D/P,Paypal,others,Cash
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
