Model No.: LC Attenuator
Brand: OEM
Origin: China
Certification: ROHS,ISO
Product Name: fiber optic attenuator
Attenuation Range: 1-10db
Operating Wavelength: sm 1310/1550nm mm 850/1300nm
Operating Temperature: -25~75 degree
Storage Temperature: -40~85 degree
Connector Type: SC/FC/LC/ST/MTRJ/MU/MPO ect.
Ferrule: Zirconia/Ceramic, Metal
Housing: Metal, Plastic
End-face: PC, UPC, APC
Structure: Fixed, Female to Male, Variable, In-line
| Selling Units: | Piece/Pieces |
| Package Type: | Individual Package,Carton Box |
The file is encrypted. Please fill in the following information to continue accessing it
Description:
Attenuators are also used to balance out transmission lines that otherwise would have unequal signal levels.
Product Name:optical attenuator,Fiber Optic Attenuator,fiber attenuator,fiber attenuators

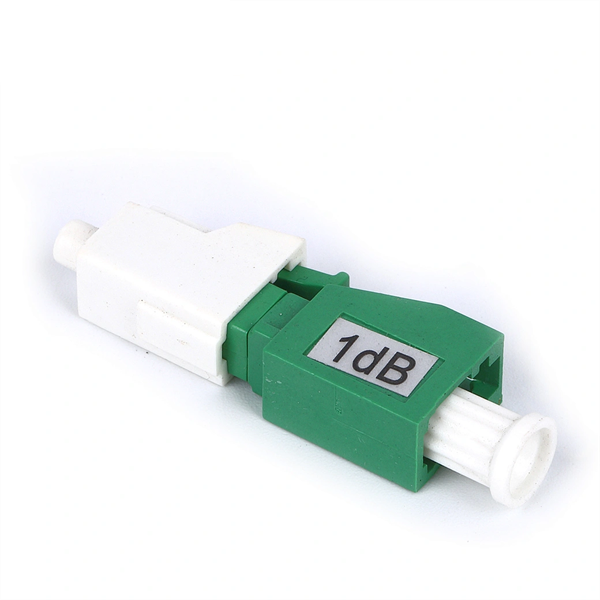

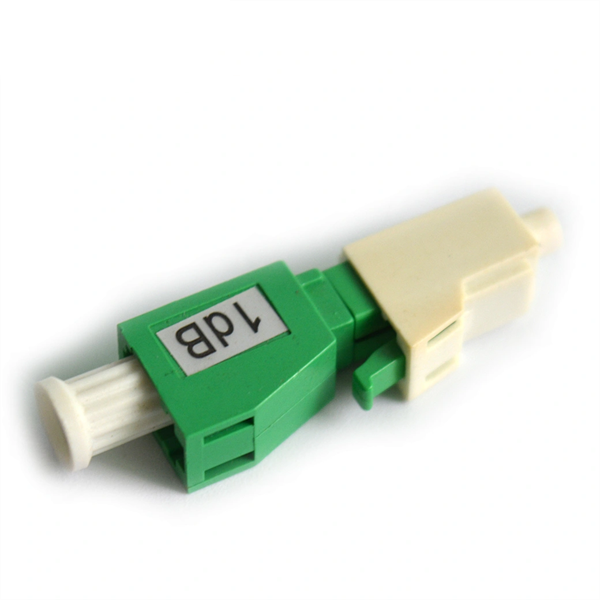

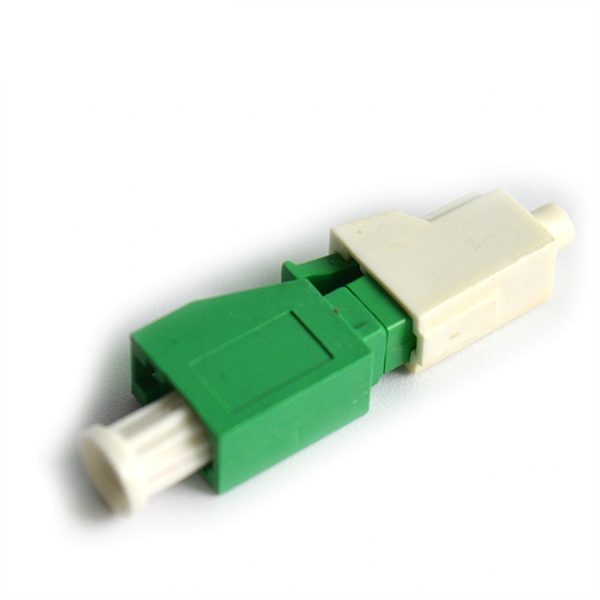

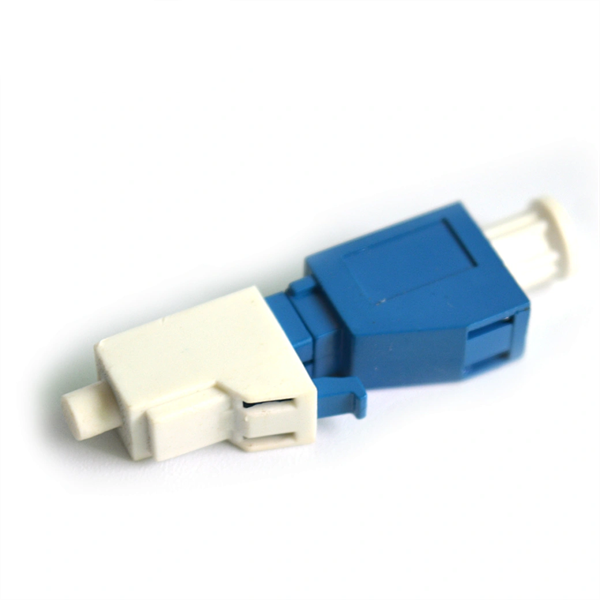

Product Picture:
Specification:
| Optical Performance | M-F Plug Type | F-F Adaptor Type |
| Testing Wavelength(nm) | SM: 1310nm/1550nm | 1310nm |
| MM: 850nm/1300nm | ||
| Attenuation Accuracy(dB) | 1-9dB; 0.5dB; 10-30dB; 10% of Attenuation Value | |
| Return Loss(dB) | ≥50dB (PC) | ≥50dB (PC) |
| ≥60dB (APC) | ≥60dB (APC) | |
| Input Power (Max.) (mW) | 300 | |
| Durability(dB) | <0.2dB Typical, 1000 Matings | |
| Operating Temperature(°C) | -40~+80 | |
| Storage Temperature(°C) | -40~+85 | |
Order Information:
| Connector Type | Application | Wavelength | Attenuation |
| FC / SC/ ST/ LC/ MPO/ MU | PC/ UPC/ APC | 1310nm/ 1550nm/ 1310/1550nm | 1, 2, 3, ….., 25db |
Feature:
Low insertion loss and back reflection
Definable attenuation from 1dB to 30dB
PC, UPC and APC polish types
Available with FC, SC, ST and LC terminations
Zirconia or Phosphor Bronze Sleeve
Single mode, Multi-mode
Various Types of Connectors FC,SC,ST,MU,LC,MTRJ,MPO
Low Splicing Loss
Application:
Fiber Optic Sensors
Test & measurement
DWDM applications
Telecommunication Networks
Local Area Network
FTTH and FTTx
Packaging: Individual Package,Carton Box
Productivity: 5000 Piece/Pieces per Day
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 5000 Piece/Pieces per Day
Certificate: ROHS,ISO
HS Code: 8536700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,D/P,Paypal,others,Cash
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
