Model No.: 24 cores splice closure
Brand: OEM
Origin: China
Certification: ROHS,ISO
Structure: In-line Type or Horizontal Type
Fiber Cores: 12 to 288 cores
Material: PC, ABS, MP
High Light: fiber optic enclosure
Application: FTTH FTTB FTTX Network
Cable Port: Various ports available
Operating Temperature: -40°C~+70°C
Install: Aerial, duct, buried
Warranty: 1 year
Certification: ROHS/ISO9001
| Selling Units: | Piece/Pieces |
| Package Type: | Individual Package,Carton Box |
The file is encrypted. Please fill in the following information to continue accessing it
Horizontal 24 cores Fiber Rack Mount splice enclosure
Description:
In-line Fiber Optic splice closure can be used in aerial, duct and direct buried application.Fiber splice closures are made of the high quality material and with the mechanical sealing structure filled with the sealing material. It can be reopened and reused without changing sealing material.
Product Name:splice closure,splice enclosure,fiber rack mount enclosure,fiber splice closure,joint closure optic,splicing enclosure,outdoor fiber splice enclosure,fiber splice enclosure,joint enclosure,joint closure box,underground fiber splice enclosure,ftth enclosure,fibre splice enclosure,optical splice closure

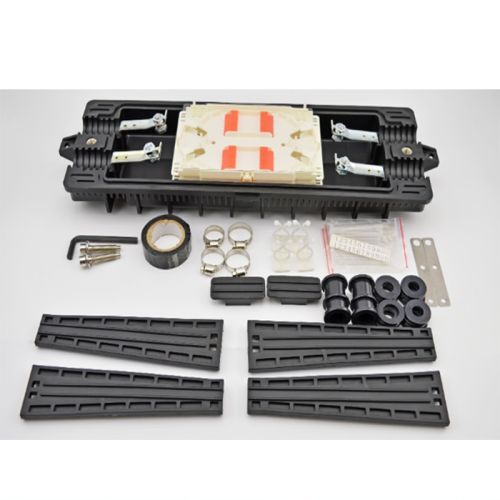

Horizontal Fiber Optic Splice Closure Picture:
Specification:
| Type | FOSC-H001 | FOSC-H002 | FOSC-H003 | FOSC-H004 | FOSC-H005 | FOSC-H006 |
| Size(mm) | 435*190*85 | 435*190*120 | 435*190*120 | 435*190*80 | 435*190*170 | 420*150*110 |
| Cable diameter(mm) | Φ 10 – Φ 17 | Φ 10 – Φ 22 | Φ 10 – Φ 22 | Φ 10 – Φ 17 | Φ 10 – Φ 22 | Φ 10 – Φ 23 |
| Max capacity(core) | 96 | 168 | 192 | 96 | 288 | 96 |
| Cable port | 2 in, 2 out | 4 in, 4 out | 3 in, 3 out | |||
| Sealing structure | Sticky cincture | |||||
| Weight(kg) | 2.6 | 2.8 | 2.6 | 2.3 | 4.7 | 2 |
Feature:
For aerial,buried,wall and pipe wall people use wells
Ring using a special material that can be repeatedly opened, re-use
Valve and grounding devices can be installed
Advanced internal structure design
Easy to re-enter, it never requires re-entry tool it
Splice tray easy to use page design
Quick way to make use of open sealed maintenance easier
Application:
Telecommunication networks
CATV networks
Local area networks
Aerial –hanger, Wall-mounting, Directly buried
Widely used in FTTH access network
Packaging: Individual Package,Carton Box
Productivity: 1000 pieces per week
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 1000 pieces per week
Certificate: ROHS,ISO
HS Code: 8536700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal,Cash
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery
