Model No.: GJYXCH
Brand: OEM
Origin: China
Certification: CE/ROHS/ISO9001 /ANATEL
Place Of Origin: China
Fiber Cores: 1 2 4 6 8 12 core
Jacket: PE PVC LSZH HDPE
Wire: FRP/KFRP/Steel Wire
Cable Weight(kg/km): 22kg/km
Core Type: G652 G657A
Package: 1km/2km per wooden drum + outer box
Keyword: FTTH drop optical fiber cable
Application: Outdoor
Cable Diameter: 2.0X5.0mm
Certification: ISO9001,ROHS,SARFT
| Selling Units: | Kilometer |
| Package Type: | 1km/2km per wooden drum + outer box |

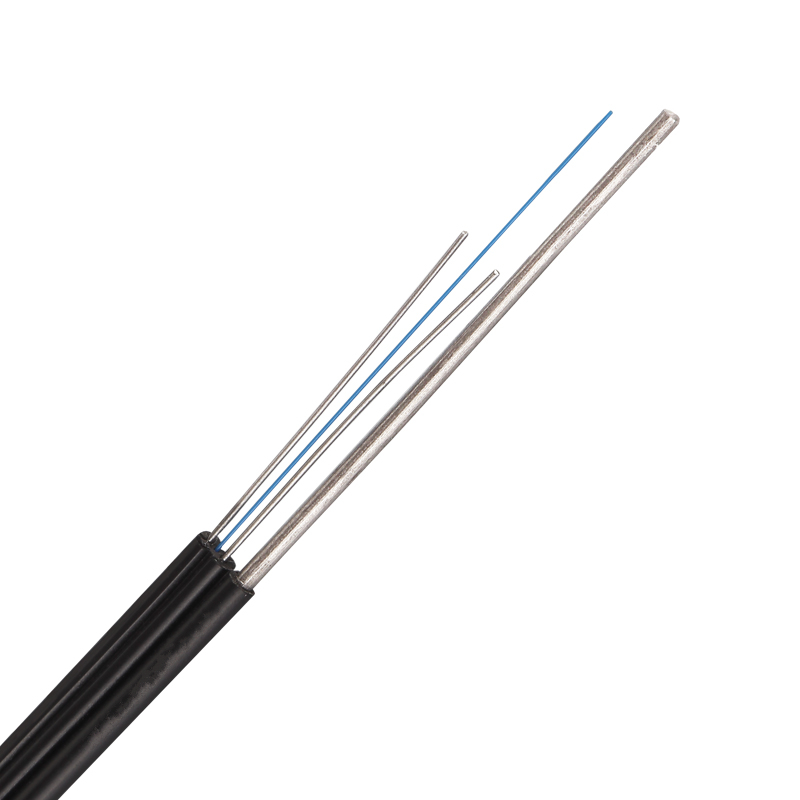

| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
Product Features for fiber optic 1 core:
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
·Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
·Single steel wire or messengers as the additional strength member ensures good performance of tensile strength.
·Simple structure, light weight and high practicability.
·Novel flute design, easily strip and splice, simplify the installation and maintenance.

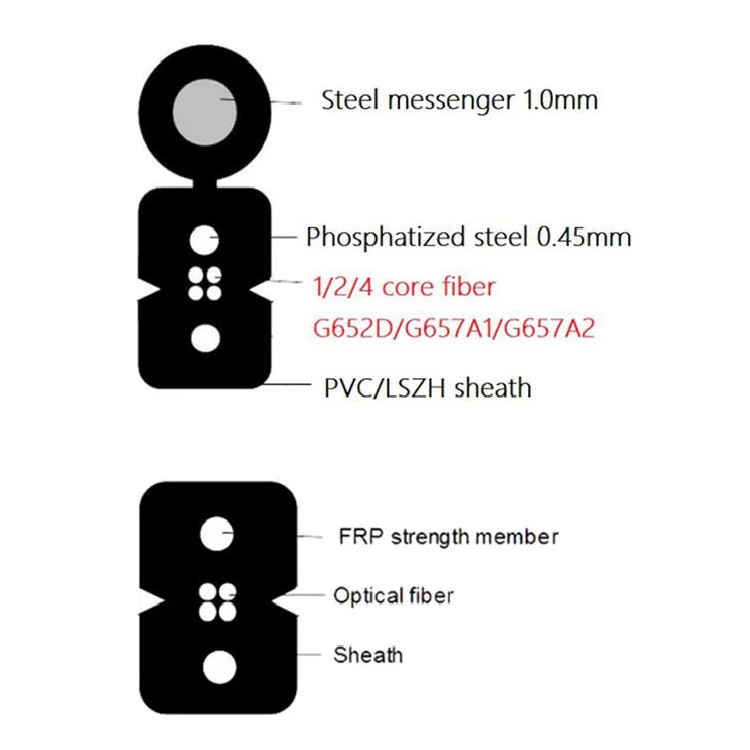

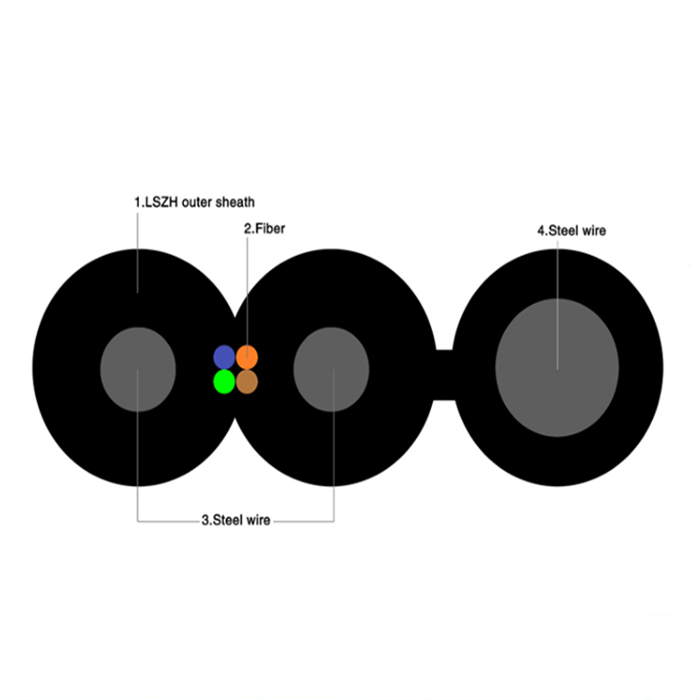

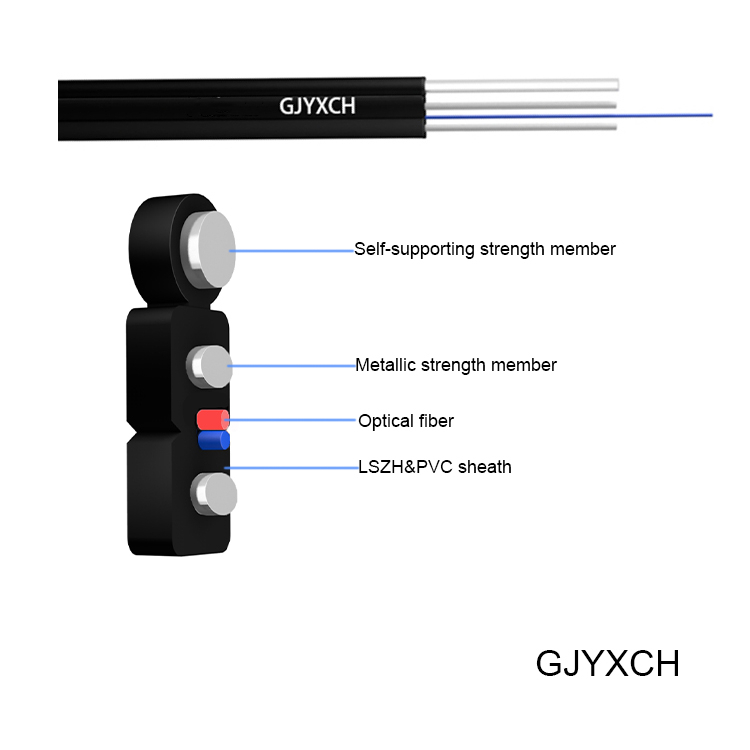

Product Construction of lszh fiber cable
Fiber:
250µm colorfiber
Fiberglass reinforced plastic (FRP) or Steel Wire.
Self-supported Member:
Steel Wire
Outer Jacket:
UV and Flame resistant LSZH
| Fiber Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius | |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 16 | ||||
| G657A1 | 0.36/0.22 | 10 | ||||
| G657A2 | 0.36/0.22 | 7.5 | ||||
| 50/125 | 3.0/1.0 | ≥500/500 | 30 | |||
| 62.2/125 | 3.0/1.0 | ≥200/500 | 30 | |||
| OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 | |
| OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 | |
| B1-OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 | |
| B1-OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 | |
Specifications for drop cable ftth
| Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) |
(N/100mm) | Crush Resistance (N/100mm) | |||
| Short Term | Long Term | Short Term | Long Term | ||||
| 1-4 | 5.2*2.0 | 18 | 600 | 300 | 2200 | 1000 | |
| 6-12 | 3.0*9.0 | 27 | 1200 | 600 | 1100 | 500 | |
Note :1.This datasheet can only be a referance,but not a supplement to the contract,Please contact our sales people for more information.
2.The cable core use the colored coating fiber of 250μm.
3.The tensile and crush of the cable are accordance with the values in the table when the strength member of FRP and Steel are used
Applications for figure 8 fiber cable
Used in access network oras access cable from outdoorto indoor
in customer premises network.
Used as access building cable in premises distribution system,especially used in indooror outdooraerial access cabling.

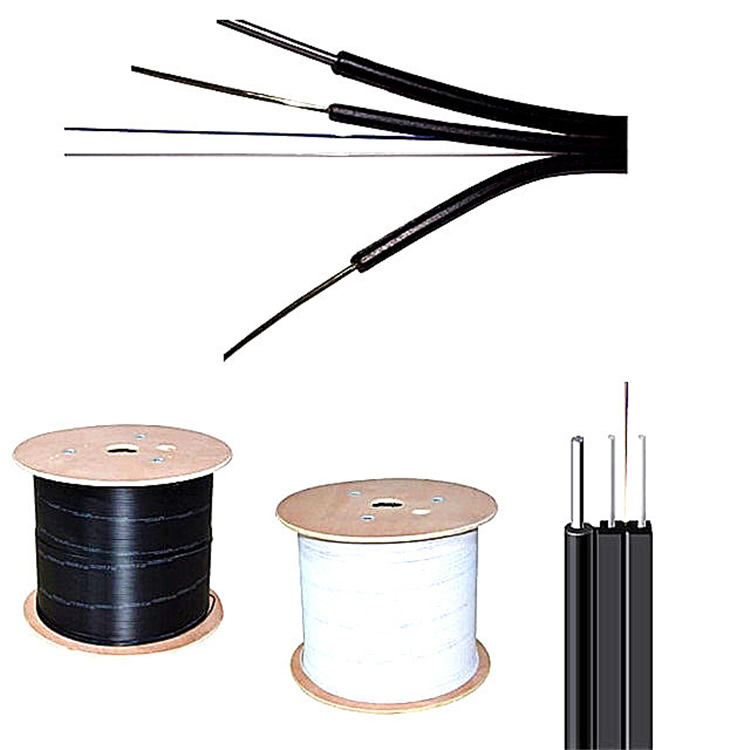

Packing
Packaging: 1km/2km per wooden drum + outer box
Productivity: 5000 Kilometer per Month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 5000 Kilometer per Month
Certificate: CE/ROHS/ISO9001 /ANATEL
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF,EXW,Express Delivery
